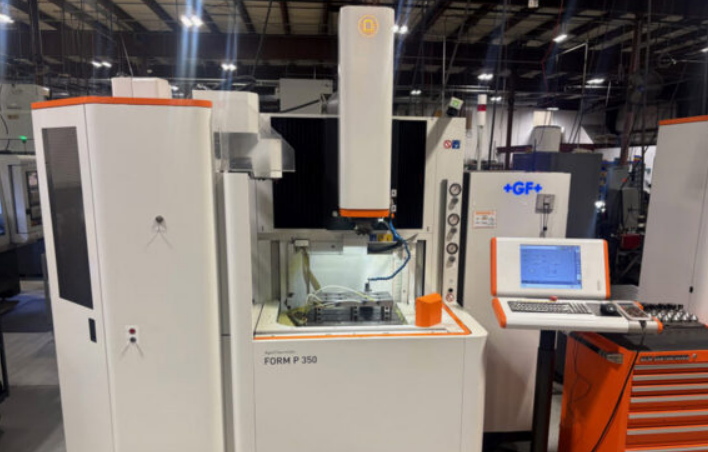

Agie Charmilles AGIECHARMILLES FORM P350

X-axis travel: 350 mm
Y-axis travel: 250 mm
Z-axis travel: 300 mm
X/Y axis speed: 6 m/min
Z-axis speed: 15 m/min
CNC control
Work tank size: 790 × 530 × 350 mm
Work table size: 500 × 400 mm
Distance between table and chuck: 150–450 mm
Maximum electrode weight: 50 kg
Maximum workpiece weight: 500 kg
Maximum workpiece size: 790 × 530 × 275 mm
Programmable bath level: 100–325 mm
Dielectric capacity: 410 L
4 paper filters
32 ATC
Machine dimensions: 1900 × 1690 × 2398 mm
Machine weight: 2,800 kg
