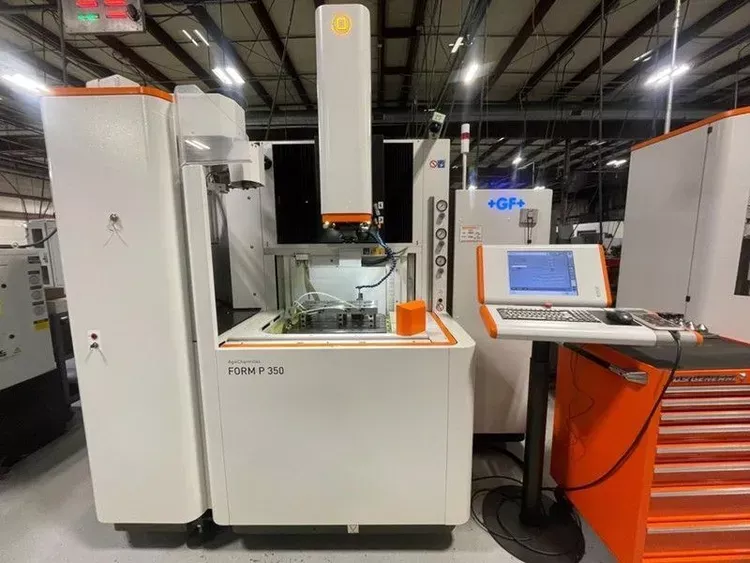

Agie Charmilles FORM P 350

EDM sinker
Axis travel (X,Y,Z): 13.78 in × 9.84 in × 11.81 in
Table size (X,Y): 19.68 in × 15.75 in
Traversing speed (X,Y): 78.74 in/min
Traversing speed (Z): 560 in/min
Axis display resolution: 0.00002 in
Permissible workpiece weight: 1340 lb
Internal tank dimensions (W×D×H): 31.49 in × 20.47 in × 13.78 in
Programmable tank level: 0–12.01 in
Distance table to chuck: 5.9 in – 17.7 in
Accura C-axis rotation speed: 0–100 rpm
Maximum flushing pressure C-axis: 1.5 bar
Permissible electrode weight (with/without chuck): 110 lb / 220 lb
Max tool weight per changer position: 11 lb
Dielectric capacity: 108 gallons
Number of dielectric filters: 4 paper cartridges
Generator type: IPGS
Peak amperage: 80 A (140 A optional)
Surface finish capability: down to 0.08 Ra µm
Control system: New HMI Windows-based
Processor: Celeron 2.2 GHz
RAM: 2 GB
Storage: 64 GB SSD
Display: 15 inch LCD touchscreen
Operating system: Windows 7 / Windows 10 32-bit
USB ports: 2
Ethernet RJ45 connection included
32-tool automatic tool changer
Renishaw 3D probe installed
System 3R workholding fixture included
Internal cooling system included
Pressure gauges included
Tool measurement system included
Dual measuring system
Programmable 3-sided drop tank
IQ module for electrode wear reduction
C-axis integrated in Z axis
High efficiency 80 A generator
Machine dimensions (L×W×H): 74.80 in × 66.54 in × 99.29 in
Machine weight: 6000 lb
Total machine power on time: 12843 h 49 min
Generator activity time: 4403 h 12 min
Execution time: 4620 h 32 min
