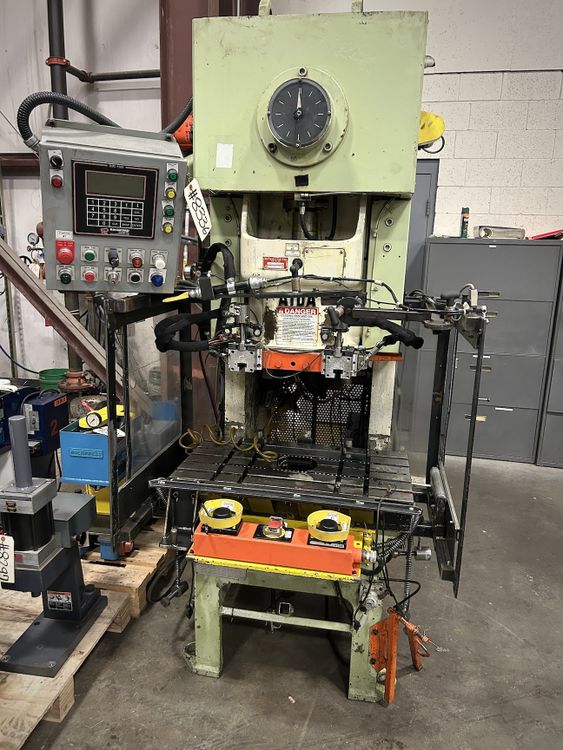

Aida NC1-45(2) 50 US ton

Press capacity: 50 US ton
Blanking capacity: 40 US ton
Stroke: 4.7 in
Maximum die height: 10.6 in
Bed area: 31.8 x 17.3 in (RL x FB)
Slide adjustment: 2.3 in
Slide area: 16.1 x 13.3 in (RL x FB) (T-slotted)
Bolster plate: 4.3 x 31.8 x 17.3 in (T-slotted)
Distance between uprights: 19.6 in
Distance floor to bed: 27 in
Speed: 80 SPM
Clutch: Wet clutch / brake combination
Electrics: 7.5 HP 1750 RPM 480V-3-60 Motor
Press control: Rockford SSC-1500
Approximate dimensions: 78 H x 52 RL x 109 FB in
Approximate weight: 9,000 lbs

Floor standing
Single back geared
Highly rigid frame with low angular deflection
Fast acting hydraulic overload system
6-point full length bronze gibs
Brake stop-time monitor
Automatic lubrication system for gibs and crankshaft bearings
AIDA safety controller
Quill mounted flywheel with flywheel brake
