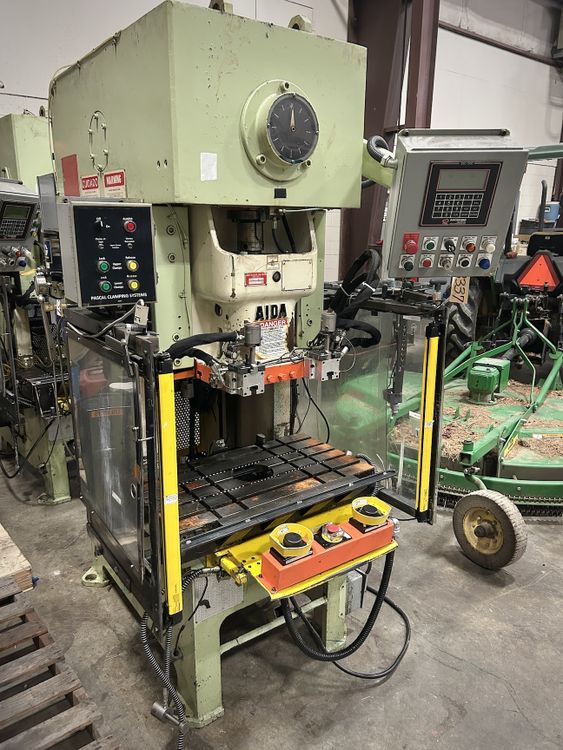

Aida NC1-45(2) 50 US tons

Press force: 50 US tons
Blanking capacity: 40 US tons
Stroke: 4.7 in
Maximum die height: 10.6 in over bolster
Bed size: 31.8 in × 17.3 in
Speed: 80 SPM
Slide adjustment: 2.3 in
Slide area: 16.1 in × 13.3 in
Bolster plate size: 31.8 in × 17.3 in
Bolster plate thickness: 4.3 in
Distance between uprights: 19.6 in
Distance from floor to bed: 27 in
Clutch type: Wet clutch/brake combination
Main motor power: 7.5 HP
Main motor speed: 1750 RPM
Electrical supply: 480 V, 3-phase, 60 Hz
Overall dimensions: 78 in × 52 in × 109 in
Approximate weight: 9,000 lb
Updated press control: Rockford SSC-1500
Floor standing configuration
Single back geared design
Rigid frame with low angular deflection
Hydraulic overload protection system
Six-point full-length bronze gibs
Brake stop-time monitor
Automatic lubrication system
Safety controller
Quill-mounted flywheel
Flywheel brake
