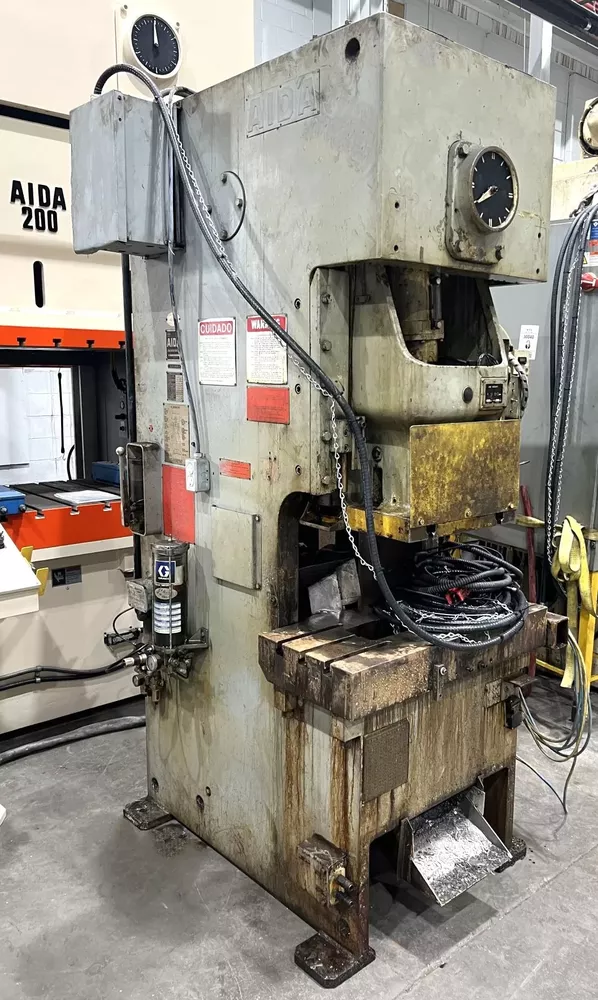

Aida NC1-6 66 US TONS / 52 US TONS BLANKING

Ref : 2715619-3-CP

Condition : Used

Manufacturer : Aida

Model : NC1-6

Pressure : 66 US TONS / 52 US TONS BLANKING

Year(s) : 1985

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Aida NC1-6
Year: 1985

CAPACITY 66 US TONS / 52 US TONS BLANKING
STROKE 3.54″
MAX. SHUT HEIGHT TO BOLSTER 10.63″
BED AREA 34.25″ X 15.75″ (RL X FB)
SLIDE / RAM AREA 18.89″ X 15.75″ (RL X FB)
SLIDE / RAM ADJUSTMENT 2.75″
SPEED 60-120 STROKES PER MINUTE
BOLSTER PLATE 34.25″ X 15.75″ (RL X FB) X APPROX. 5.2″ THICK
DISTANCE BETWEEN UPRIGHTS APPROX. 22″
FLOOR TO BED HEIGHT APPROX. 30.33″
AIR CLUTCH AIDA AIR CLUTCH AND BRAKE
PRESS CONTROLS YASKAWA VS CONTROLLER CVSR-404G
ELECTRIC MOTOR APPROX. 7.5 HP 230/460V-3-60 MOTOR | 20.1/10.05 AMPS
DIMENSIONS APPROX. 50″ X 60″ (RL X FB) X 99″ HIGH
WEIGHT 12,000 LBS.
