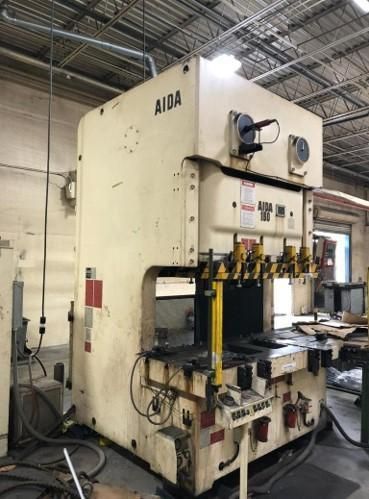

Aida NC2-160 160 Metric Tons
Ref :
2737810-3-AW
Condition :
Used
Manufacturer :
Aida
Model :
NC2-160
Pressure :
160 Metric Tons
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
15 Aug. 2025
Press Force: 160 Metric Tons
Blanking Capacity: 127 Metric Tons
Slide Stroke: 200 mm
Strokes per Minute: 30–55 SPM
Die Height: 500 mm
Slide Adjustment: 30 mm
Slide Area: 1498.6 x 640.1 mm
Bolster Area: 2040 x 640.1 mm
Required Air Pressure: 71 psi
Main Motor Power: 20 HP
Power Supply Voltage: 460 V
Phase: 3
Frequency: 60 Hz
Control Voltage: 110 V
Total Load Current: 27.3 A
Primary Motor Load Current: 23 A
Primary Breaker: 50 A
