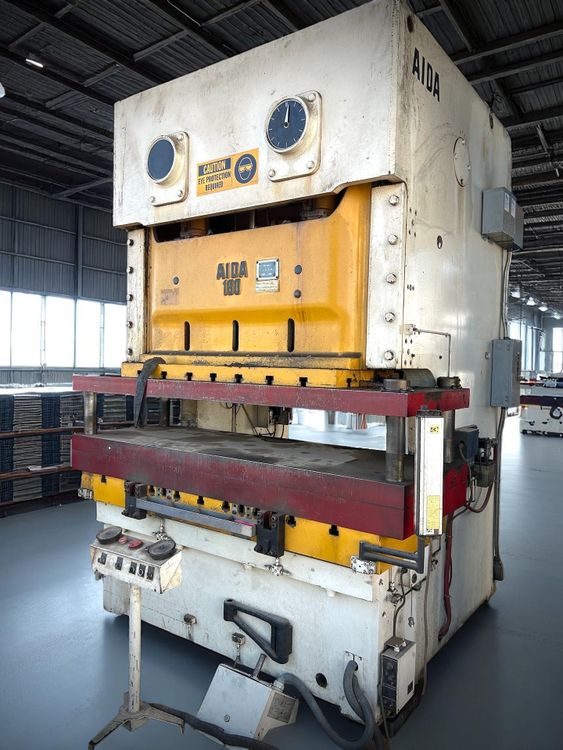

Aida NC2-160 176 US ton

AIDA NC2-160
1985

Technical data
Capacity: 176 US ton
Blanking capacity: 141 US ton
Stroke: 7.9″
Max die height over bolster: 17.7″ SDAU
Bed area: 79.5″ R-L × 29.9″ F-B
Speed: 30–55 SPM
Slide adjustment: 3.9″ motorized
Slide area: 59″ R-L × 29.9″ F-B (T-slotted)
Bolster plate: 6.5″ H × 79.5″ R-L × 29.9″ F-B (T-slotted)
Distance between uprights: 63″
Distance floor to bed: 31″
Clutch: Aida wet clutch/brake combination
Electrics: 20 HP 1750 RPM eddy current drive
Control: New CIECO 1100R press control (with reconditioned price)
Approx. dimensions: 128″ H × 90″ R-L × 82″ F-B
Approx. weight: 44,000 lbs
Highly rigid frame with low angular deflection
Hydraulic overload protector
6-point full bronze gibs
Automatic lubrication system
Ball and socket connections
Hardened and ground pinion and main gear
Quill-mounted flywheel
Air counterbalance
Floor standing
