AIRKOMP

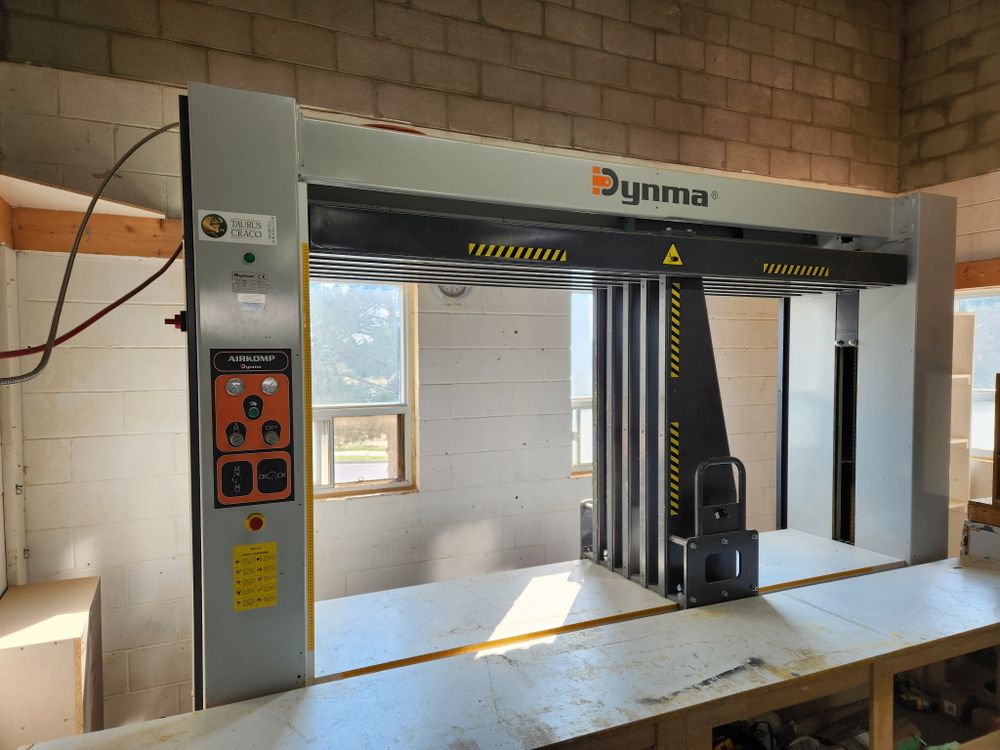

The Dynma AIRKOMP Electro-Pneumatic Press is a manual load press designed for efficient furniture assembly, particularly for 45º jointing system cabinets.
It features robust construction with intercrossed steel pipes for quick setup without adjustments via an electro-pneumatic system.

Max/min cabinet height: 1,380/300 mm
Max/min cabinet width: 700/200 mm
Overall size: 3,660 x 2,270 x 900 mm.
Max strength: 1,700 kg vertical - 1,200 kg lateral.
Vertical platform with 6 steel pieces (150x50 mm), lateral column with 5 steel pieces (150x50 mm), polyethylene strips for smooth sliding.
420 mm standard working height
400 V/50 Hz, 0.75 kW, 6 bar air pressure, 25 Nl/cycle air consumption.
Weight: 2,100 kg.
