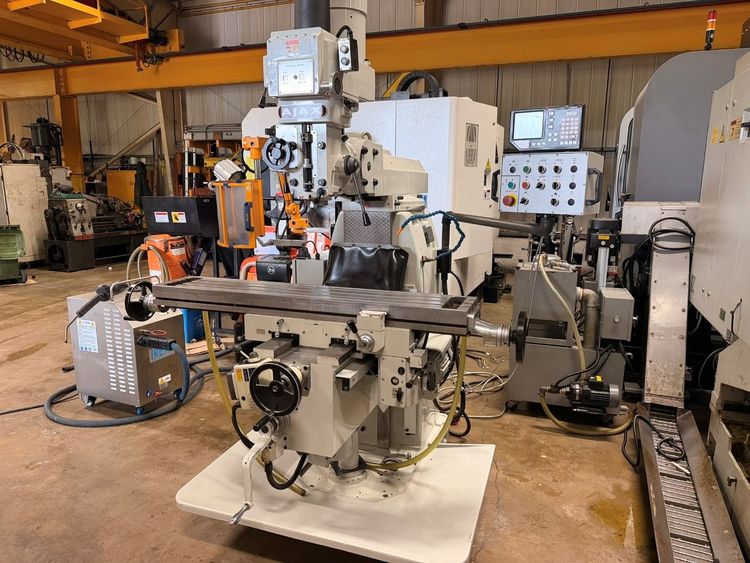

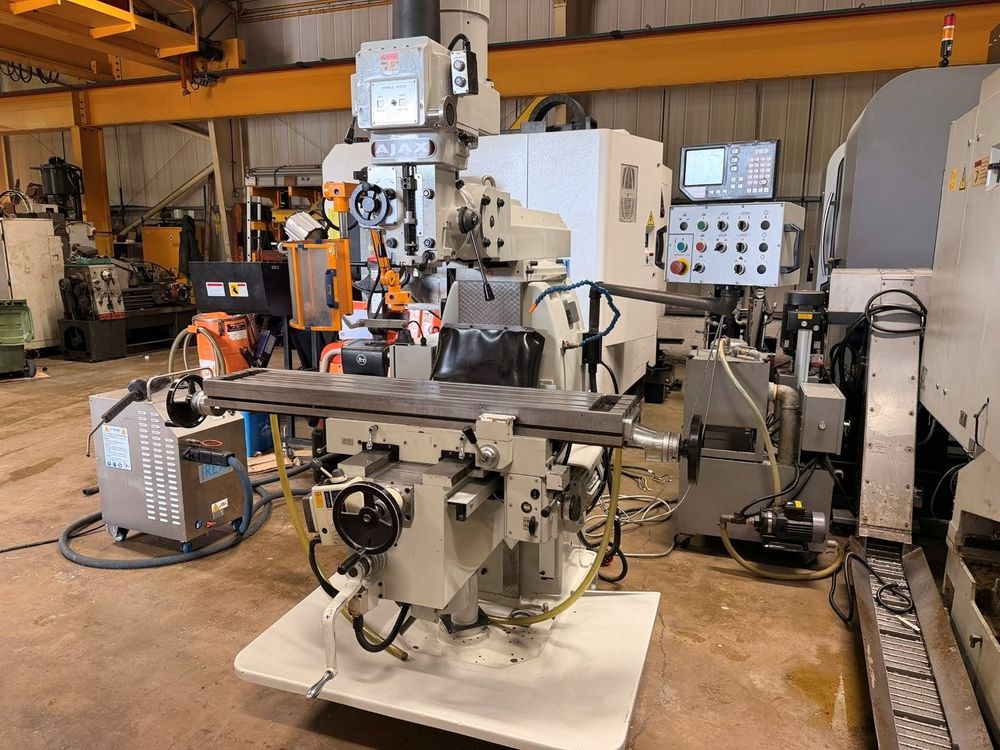

Ajax AJT500 Vertical 3600 rpm

Ref : 2811249-3-GO

Condition : Used

Manufacturer : Ajax

Model : AJT500

Type : Vertical

Spindle Speed : 3600 rpm

Year(s) : 2018

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 1120 mm
Y-Axis Travel: 390 mm
Z-Axis Travel: 450 mm
Quill Travel: 140 mm
Table Size: 1470 × 300 mm
Spindle Nose to Table: 85–535 mm
Spindle Centre to Column: 350–820 mm
Overarm Travel: 475 mm
Spindle Taper: ISO 40
Spindle Speed: 6–3600 rpm
Spindle Motor: 5 HP
Head Swivel: ±90°
Ram Swivel: 360°
3-Axis DRO
Z-Axis Rapid Feed
X-Axis Power Feed
Y-Axis Power Feed
Swing Arm Cutter Guard
Coolant System
Work Light
Machine Dimensions: 1740 × 2020 × 2350 mm
Weight: 1750 kg
