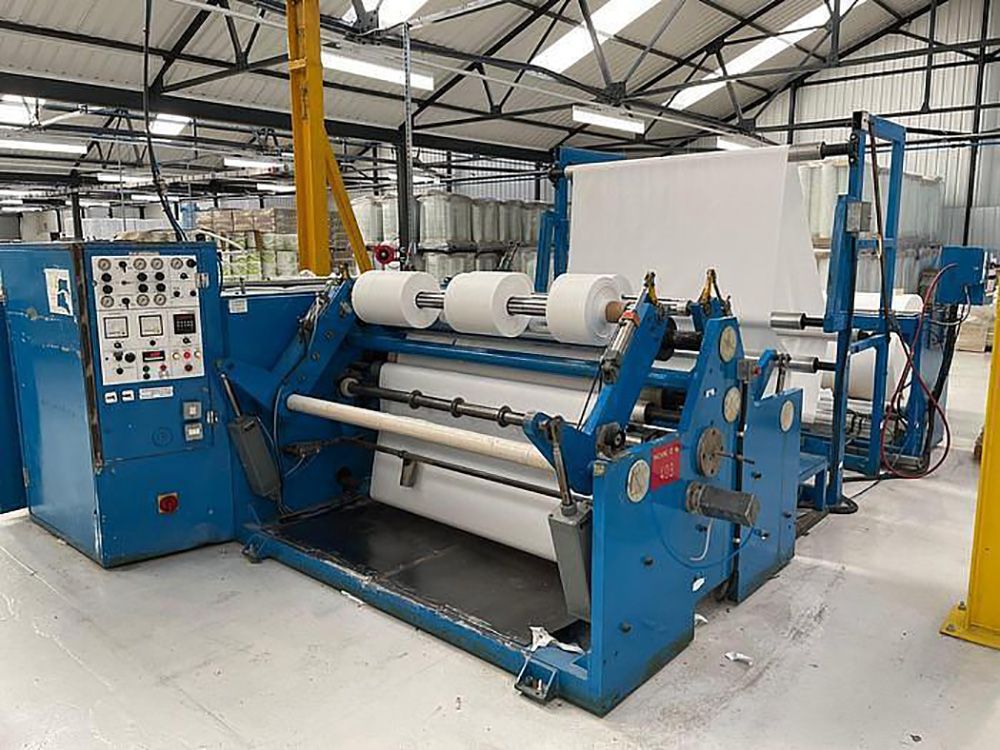

Alan Duffy Center Surface Duplex Rewinder 65"

65" Center Surface Duplex
Single shaft unwind.
Designed to run simplex on the first rewind position or duplex
40" diameter shafted unwind with roll lift
3" unwind air shaft

Pneumatic roll lift for self loading
Pneumatic braking and closed loop tension control.
Side shifting with electro-mechanical actuator for automatic edge guiding.
Walk over platform (steel) for access to upstream duplex shaft.
Rewind diameter: 40" max per shaft
3” OD air shafts
Center driven shafts on pneumatically actuated lay-on arms with individual drive motors.
S-wrap roll, Lay-on bed roll and slitter anvil roll have a common drive motor.
SSD 3 motor DC drive system.
