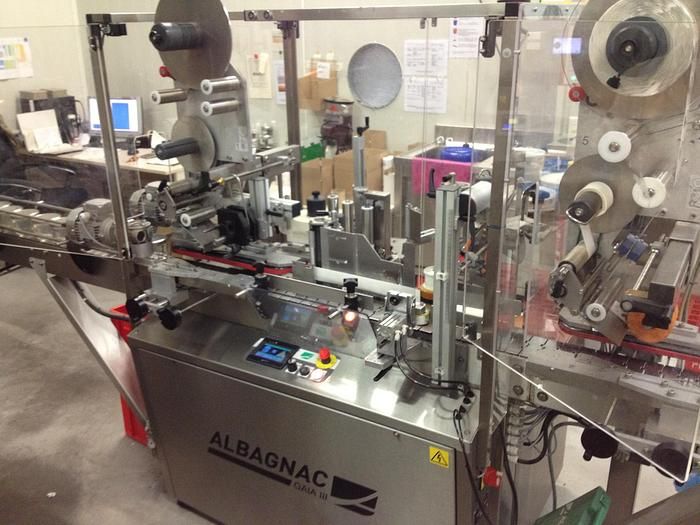

Albagnac GAIA III, Labeling machine
EUROPE (Western and Northern)
Brand : Albagnac
Power approx. 1600 pieces/h
Dimensions / weight 3350mm x 1150mm x 1950mm
The machine is suitable for labeling cylindrical and cone-shaped packaging with
Diameter 55 - 115 mm and height 120 - 380 mm, which requires different format sets. It
up to 3 different labels can be applied in one go.
Magazine 1 is suitable for attaching a vertical guarantee band,
Station 2 for attaching a belly label and Station 3 for placing a horizontal top label.
Each label station can be activated/deactivated.
The machine was used to cap jars with Ø 82 mm and Ø 100 mm:
Ø(min) = 82 mm
Ø(max) = approx. 100 mm
Height(min) = 65mm
Height(max) = ca.170 mm
Working speed up to approx. 1600 pieces/h (depending on Ø)
