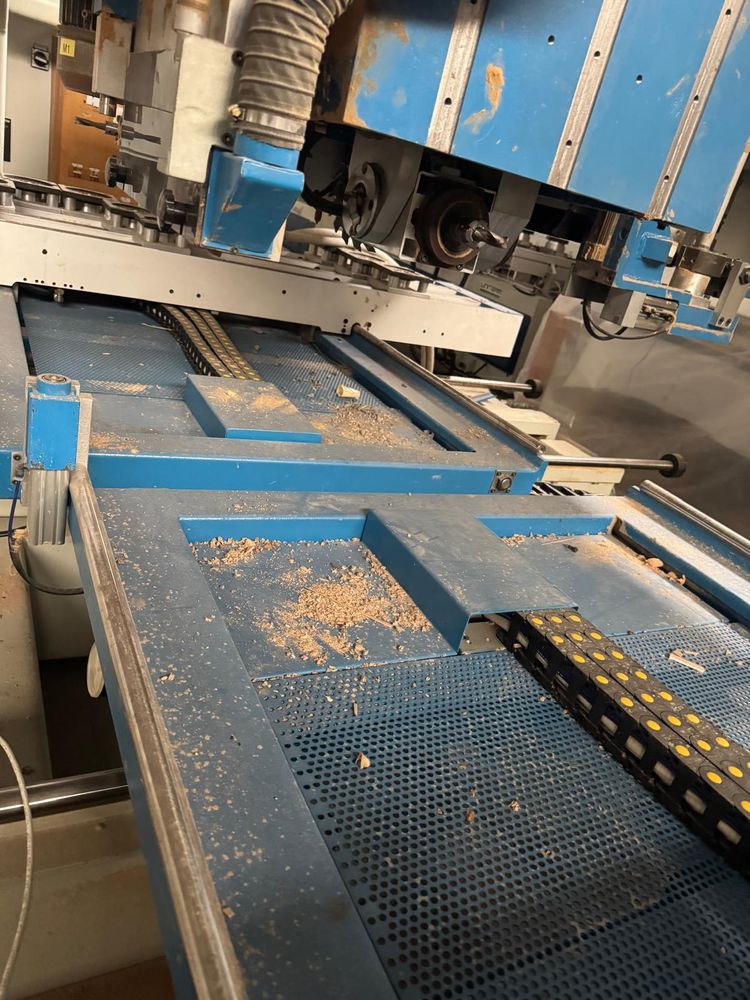

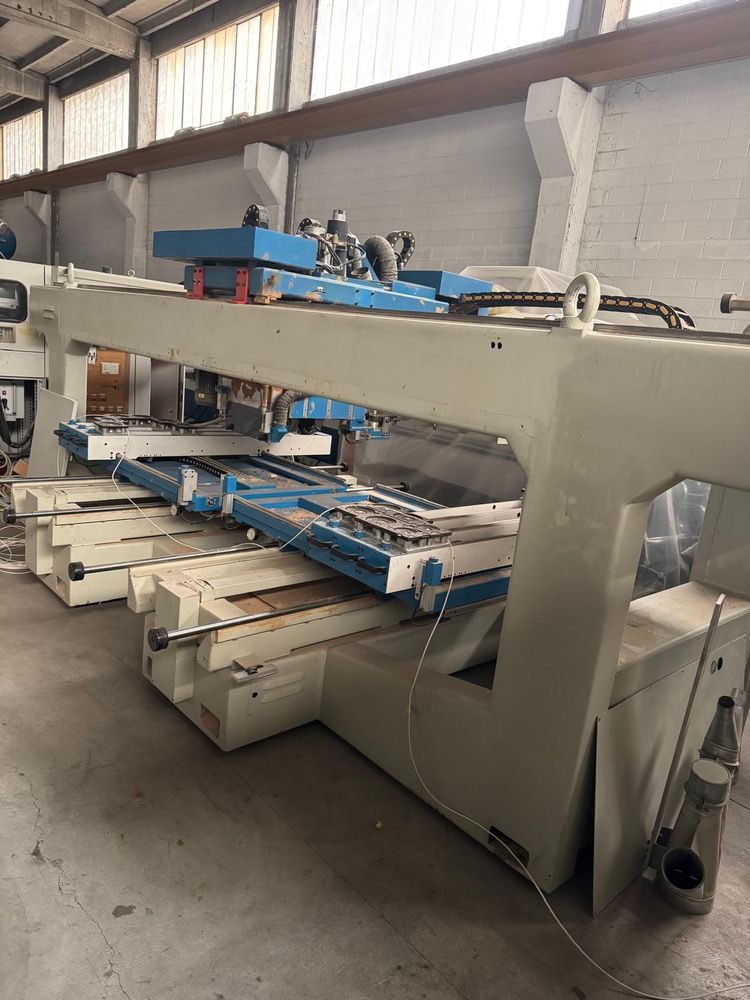

Alberti FORMAT 90 CNC Working centre

Alberti FORMAT 90 CNC Working centre
working area 3000x1250 (1716) mm.
max workable thickness 50 (60) mm.
maximum programmable X-axis speed 40 m / min
Y-W axis 40 m / min.
Z axis 9 m / min.
spindle motor power no. 2x2 HP - 3200 rpm

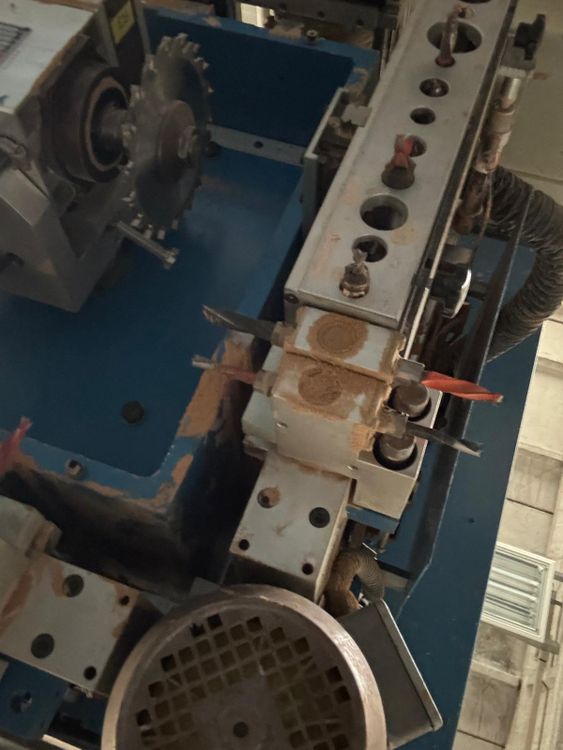

independent vertical spindles n. 27 pitch 32 mm.
independent horizontal spindles on X or Y axis on request
milling motors controlled by inverter 12-18000 rpm 7.5 / 9 HP
ISO 30 tool changer electro spindles HP 9
blade group for grooves in direct grip 1.8 HP 12000 rpm
max installed power KW 12
operating pressure 6 bar
speed air intake: 25 mt / sec
total weight 4450 kg
overall dimensions including cemntralina mm
5800x3450x1950
