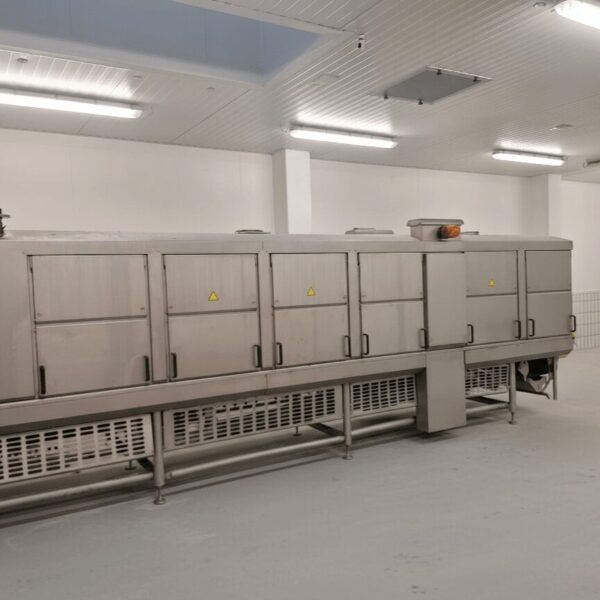

Alco AGT 600/7200-T Contact Frying System

THERMAL OIL HEATED
– uniform, double-sided contact frying
– products run between upper and lower belts,
which are heated by heated plates
– incl. control unit for thermal oil
– cooking takes place in the product’s own fat,
no additional fat addition necessary
– for low-fat or dry products, a
thin film of fat may be necessary
– distance between Teflon belts and heating plates
is adjusted depending on the product
– height adjustment is infinitely variable via electric
spindle drive
– automatic belt control ensures accurate
running and optimum belt tension
– machine has automatic belt washing
device with scraper and spray nozzle system
– cleaning system increases the service life of the
teflon belts and improves product quality
– control via PLC and operation via touch panel.
All parameters such as belt speed and
temperatures are set and displayed there
Design:
– Teflon™-coated upper and lower belt
– heating via thermal oil plates with integrated
control unit
– automatic belt control for upper and
lower belt
– electric belt height adjustment (3–100 mm)
– suction nozzles at inlet and outlet
– automatic, continuous belt washing system
without chemicals
– extended cleaning system with spray bars
(top/bottom, steam or water)
– variable belt drive via frequency converter,
infinitely adjustable throughput time
– PLC control with touch screen, recipe management
and remote maintenance
– made entirely of stainless steel and food-grade
plastics
– stainless steel control cabinet
– belt welding device
– includes discharge belt approx. 500 mm
– spare parts package: 1 set of belts, pneumatic
components, frequency converter, small parts
Technical data:
– belt width: 600 mm
– pass height: 3–100 mm
– gar length: approx. 7,200 mm
– max. plate temperature: approx. 275 °C
– 14 heating plates
– throughput time: 60–450 seconds
Connection values:
– heating power (thermal oil): 320 kW
– electrical power: approx. 5 kW
– voltage: 400 V / 50 Hz, 3 phases + N + PE
– compressed air: 6 bar
– hot water connection: +65 °C
(for belt washing system)
Dimensions:
– length: approx. 9,000 mm
– width: approx. 2,500 mm (with control cabinet)
– height: approx. 2,500 mm
Thermal oil system:
1 heat transfer oil heater system
including:
– heater
– control system
– blower burner
– circulation pump
– expansion tank
– collection tank
