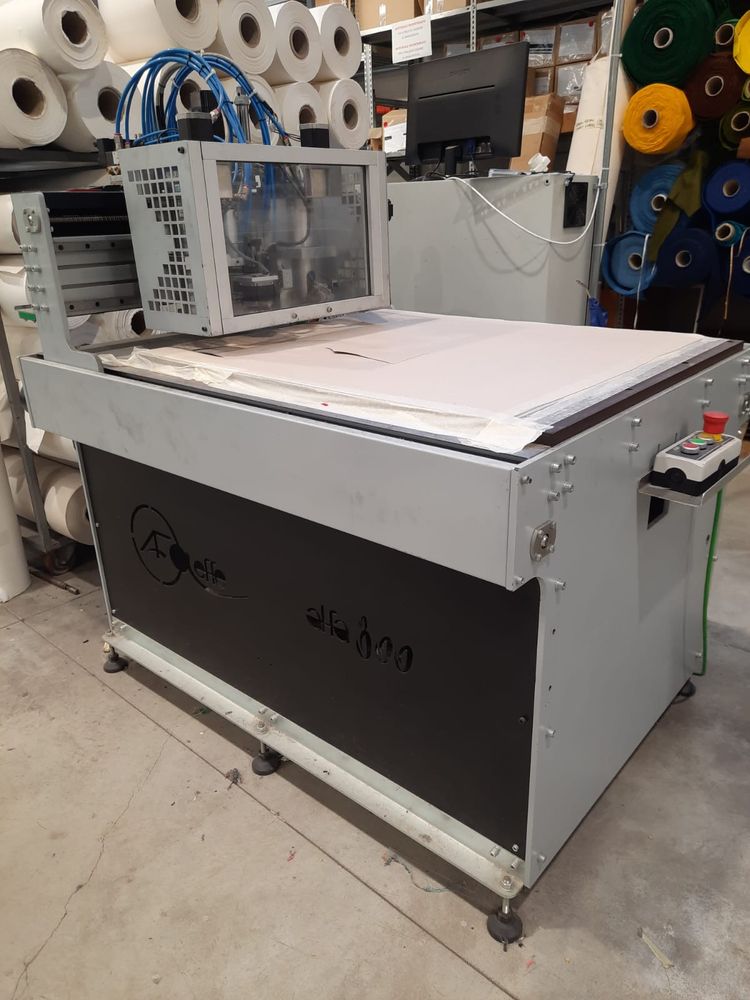

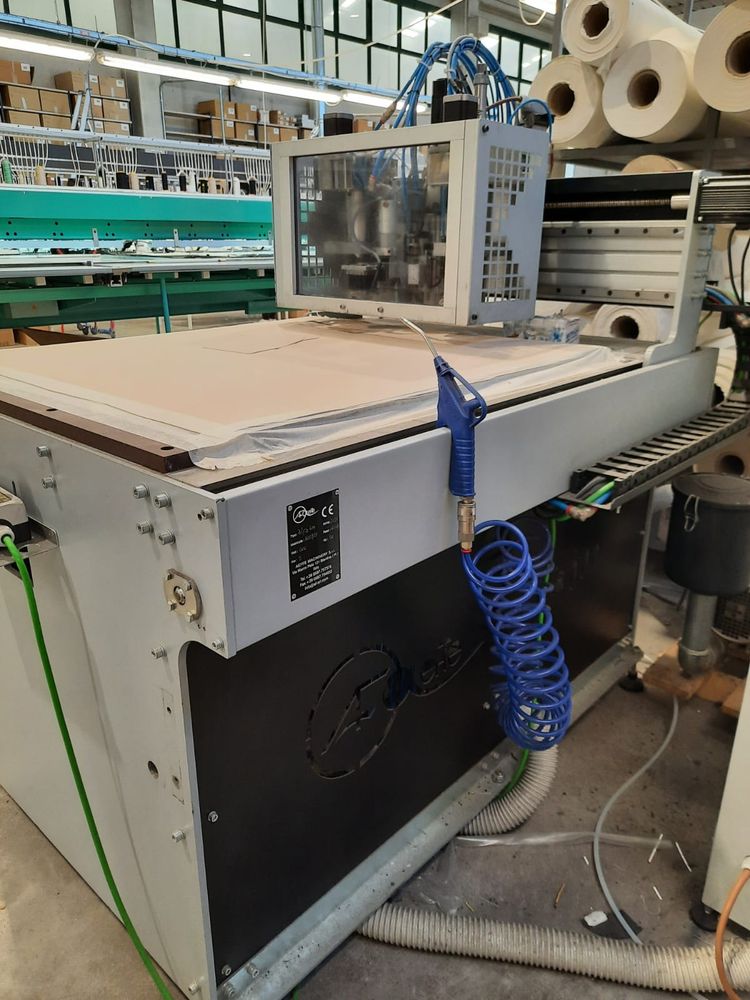

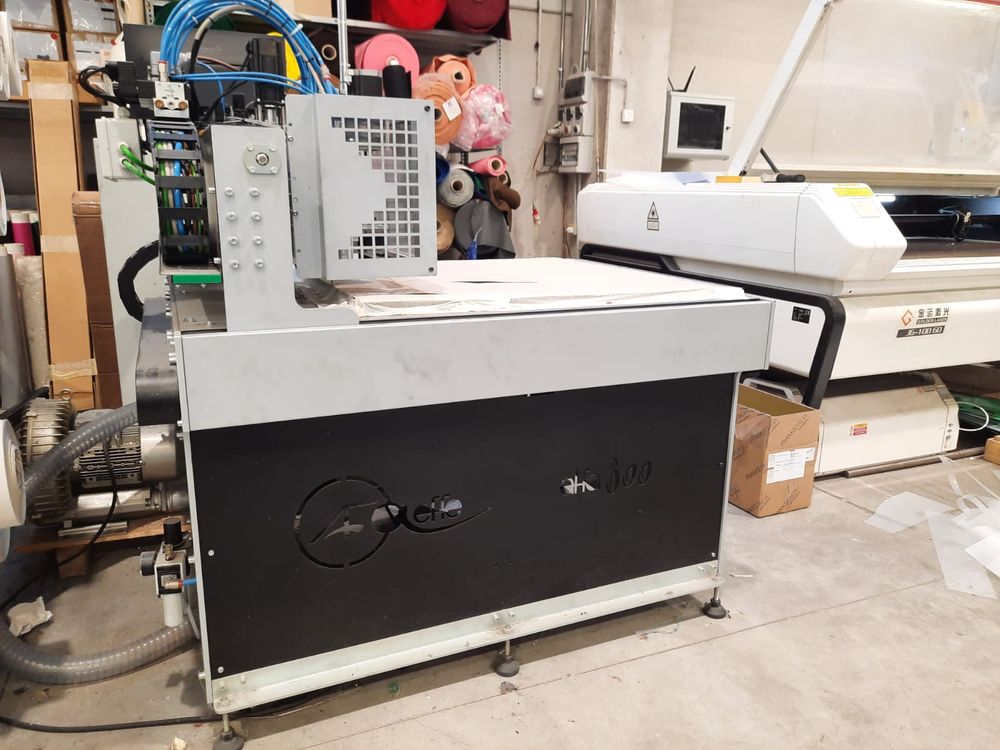

Alfa 600X600

Ref : 2730309-4-AW
Condition : Used
Manufacturer : Alfa
Model : 600X600
Number Of Colors : -
Size : -
Year(s) : 2024
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Complete with:
- Working area 600x600 mm
- Adjustable working speed 0-20,000 mm/min
- Grease lubrication of slide blocks
- Axis drive with brushless motors and acceso motors
- Movement via preloaded recirculating ball screws and precision guides
- Double screw on the X-axis
- Vacuum table with side-channel pump
- 4-axis numerical control + spindle adjustment

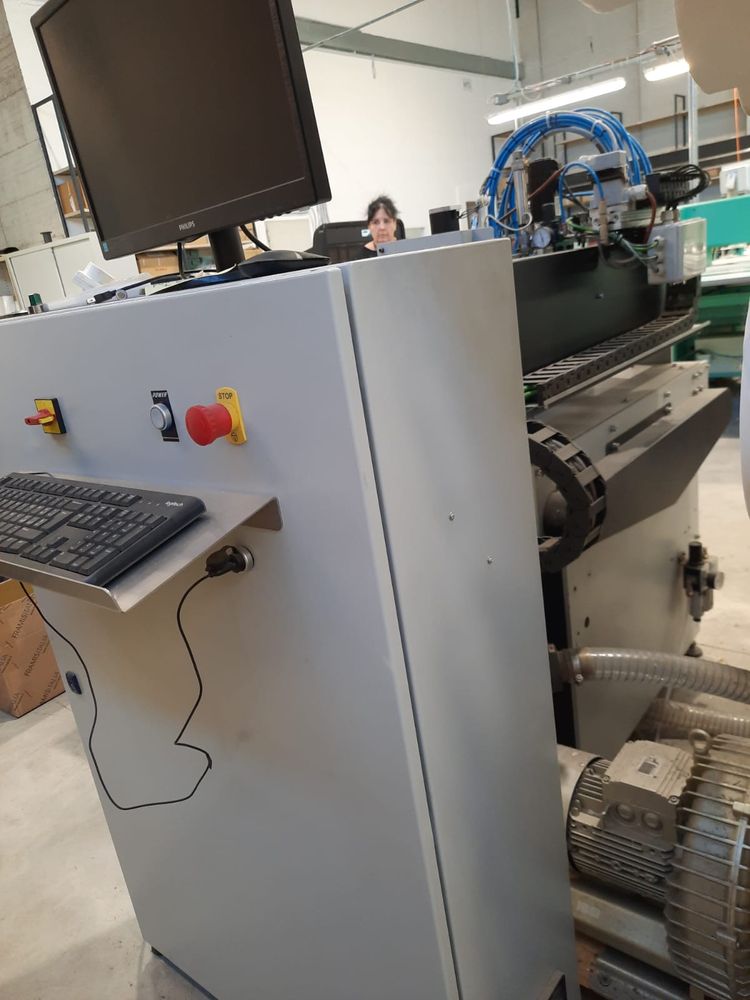

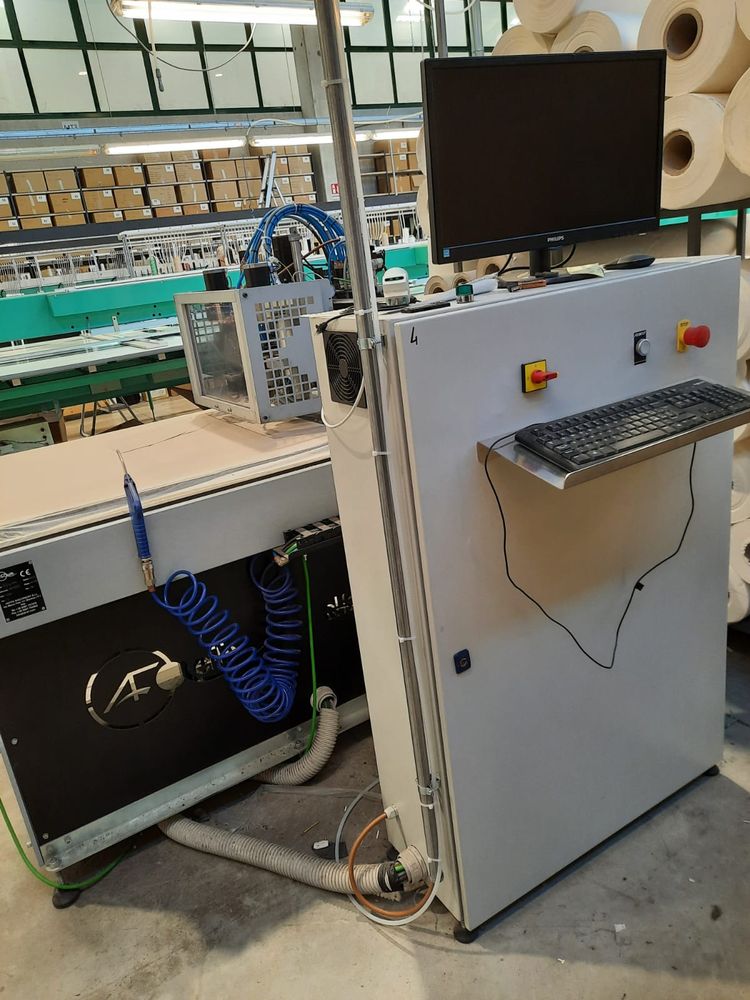

- Separate cabinet with electrical panel and integrated control computer with monitor and keyboard
- Notebook with pre-installed programs
- CE-compliant machine

Functions:
CUTTING
- Pneumatic tangential cutting head with fixed and oscillating blade:
- Rotation via bipolar stepper motor
- "Home" reference for rotary axis via integrated inductive sensor
MILL
- Standard 43 mm clamping shank within tolerance H7
- 100-watt pneumatic motor/100,000 RPM
- The milling head can be manually tilted and rotated on its own axis to create scaling.
DRILLING
- 2 pneumatic punch/die holders, 25 mm stroke.
PYROGRAPHER
- Rotary tool heated up to 300°.

Barely used, in excellent condition
