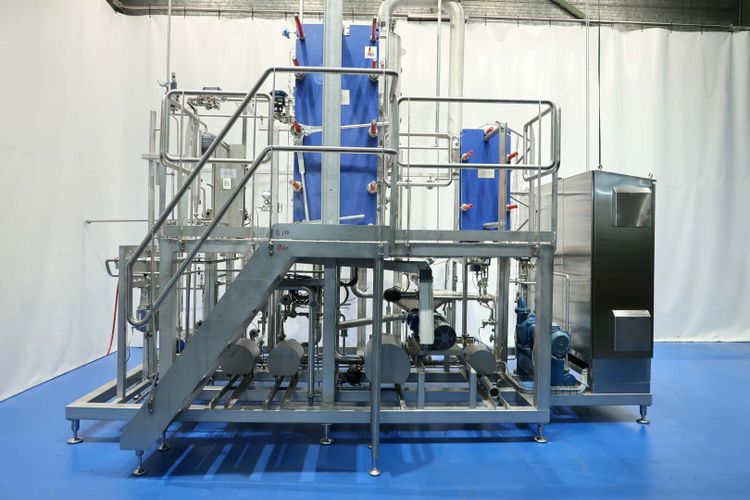

Alfa Laval Pilot Evaporator

Brand new condition (used only for tests)

Capacity:
162 liter/hour water evaporation
200 liter input 38 liter output concentrate

Dimensions:
Total 590 x 355 x 467 cm
Weight: +- 5.290 kg.

Pilot Evaporation system for concentrating feed from 12% to 65% (dry solids by weight
percentage).

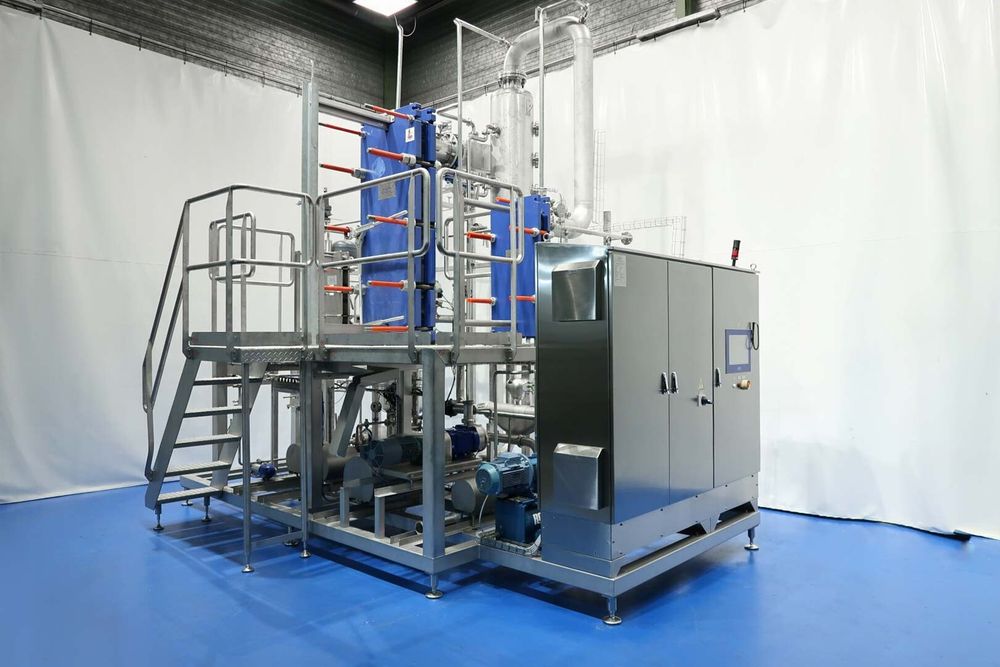

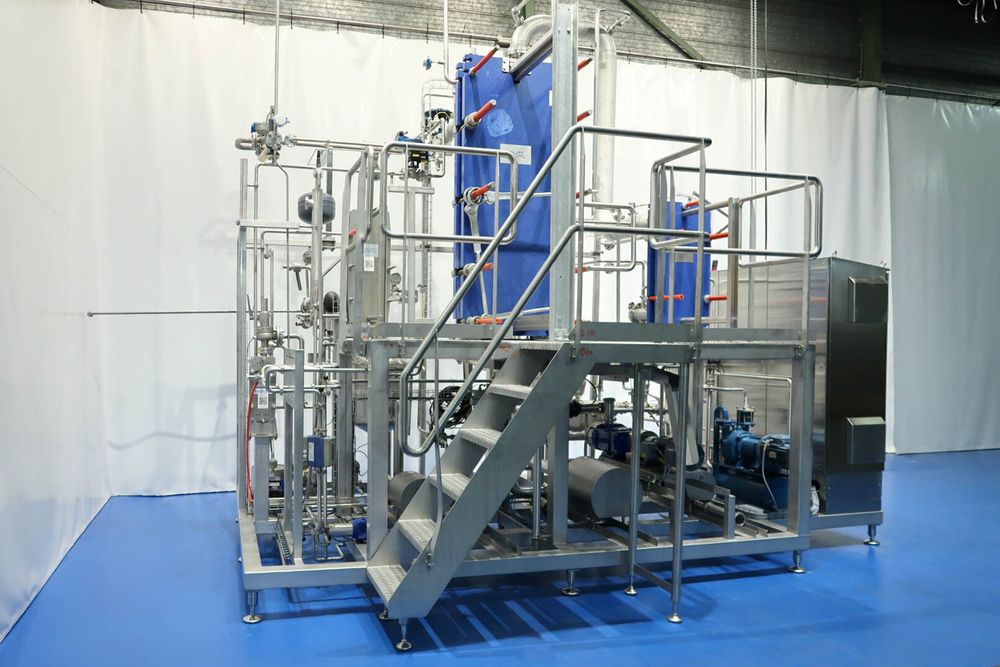

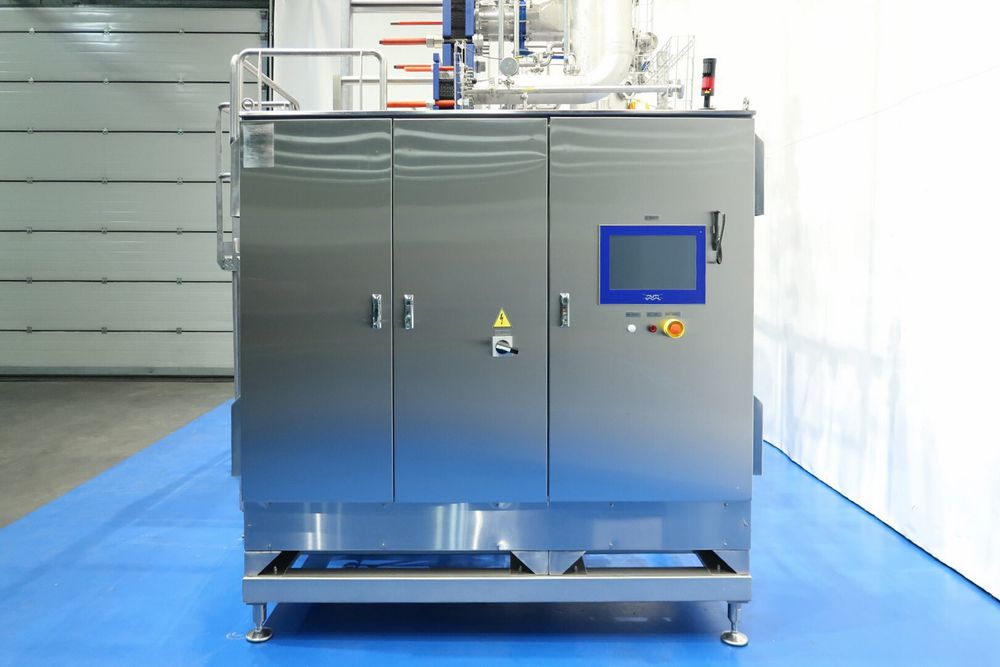

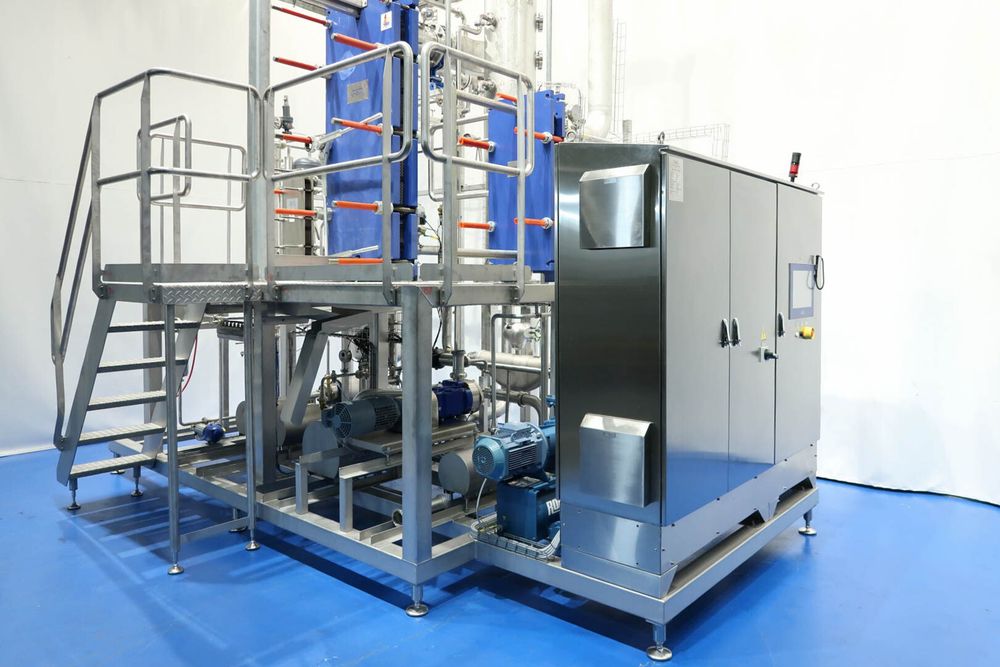

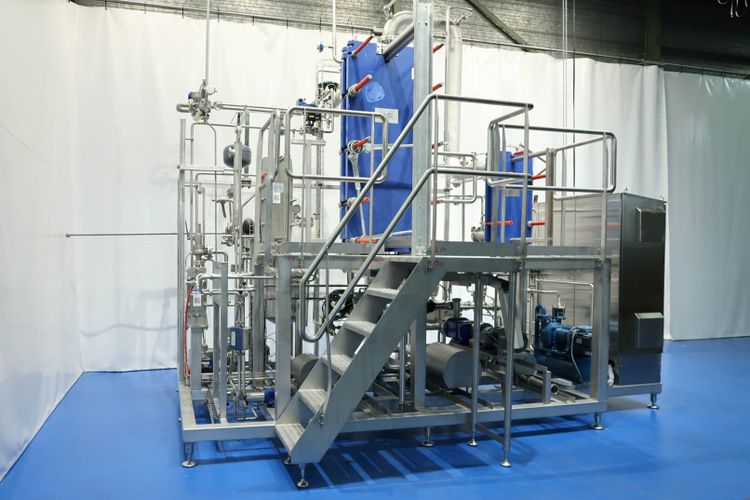

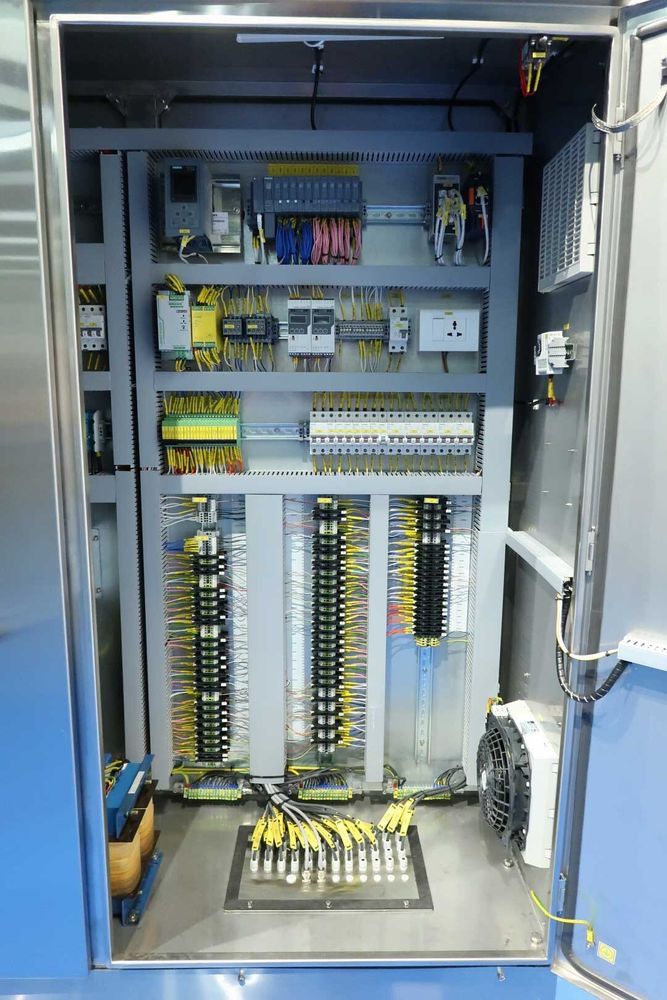

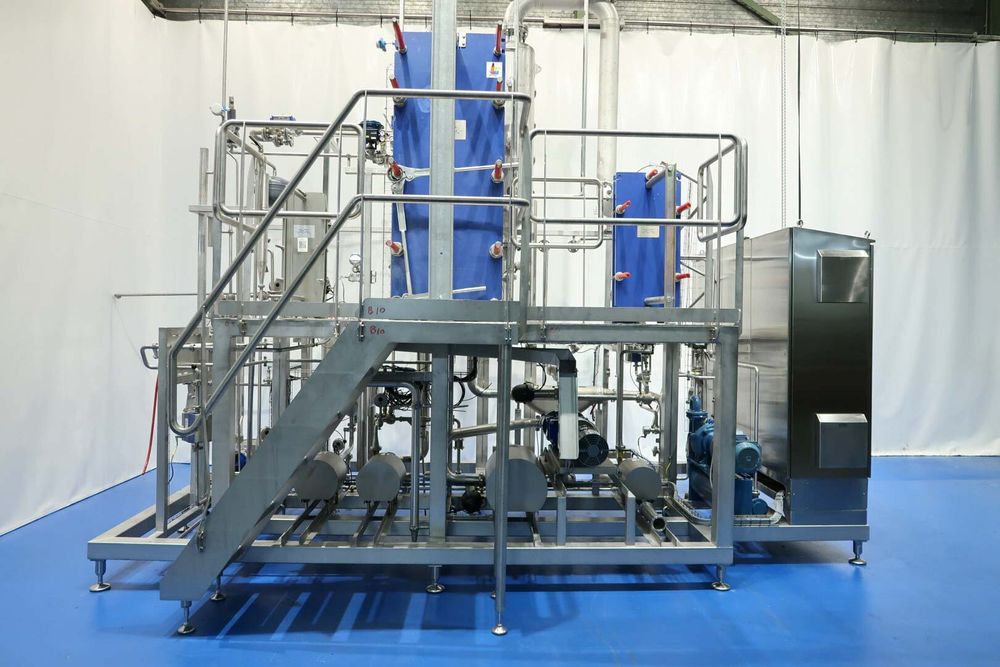

Skid mounted compact Unit has all components and the electric controls on a frame it is a 1-effect Plate evaporation system driven by motive steam.
With 163kg/h water evaporation design: flow rate in 200 kg/hr - pressure 1,5 barA - temperature 15 °C –
at approx. 12%.
Product out: flow rate 37 kg/hr concentrate - temperature 63°C - concentrate 65%.

Main equipment:
Plate heat exchanger, Condenser PHE, Preheater PHE-
Feed, Preheater-Water, Cyclone separator for Effect-1, feed pump, Water loop pump, Effect-I recirculation pump 1, Effect-I recirculation pump 2, Effect-1 condensate pump,
Condenser condensate pump, drain pump and vacuum pump.

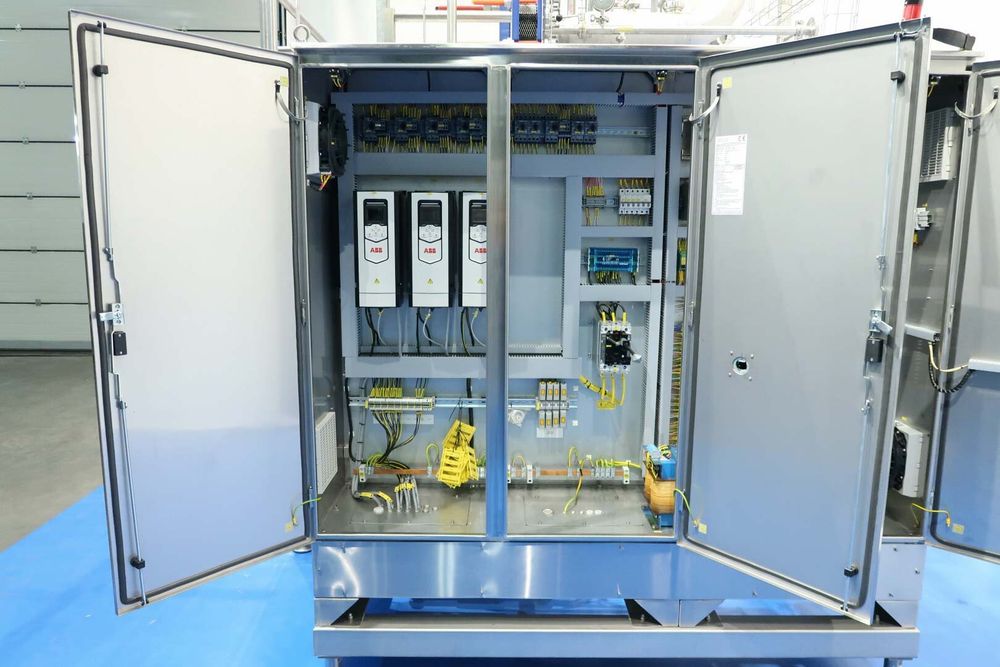

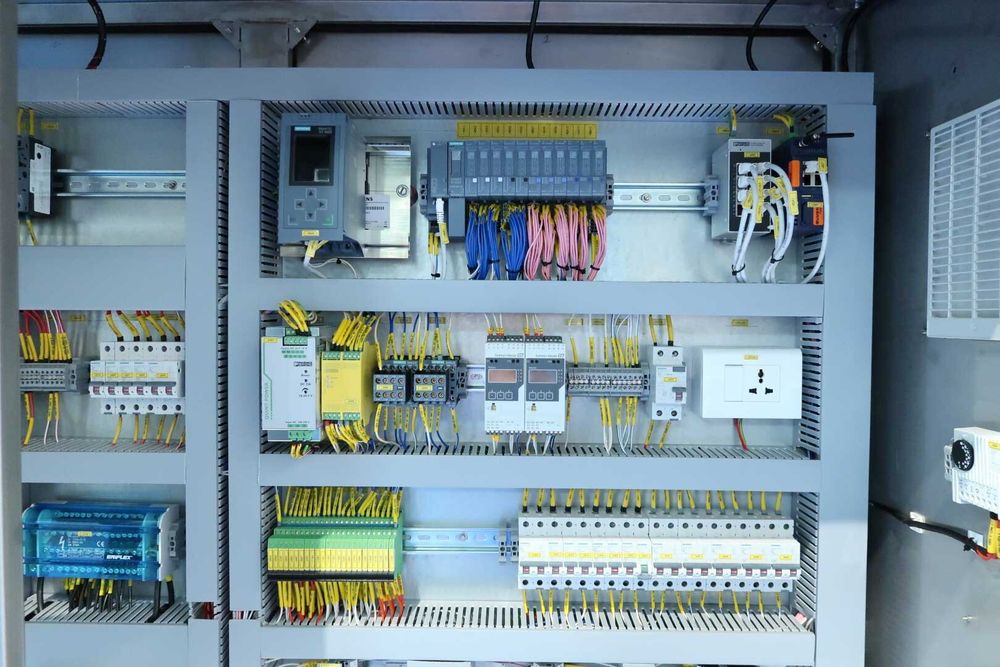

State of the machine: as new, only used for very few runs. Documentation digitally available: Electrical diagrams,
Technical documentation, P&ID, Component drawings, Installation and Operation Manual.
Built for R&D purposes.
Unit can be used for process development and optimalisation, testing before industrial scale-up, testing new products or compositions, R&D, economy
and technical feasibility study.
With SS frame with 23 spare plate heat exchanger plates.
