Alfa Laval type ALDEC 20, up to 10 m³/h Sludge Decanter Centrifuge

Decanter Centrifuge type ALDEC 20
2 - 10 m3/h Sludge

for industrial Solid/Liquid Separation
Condition: Used, stored in warehouse

For sale is an Alfa Laval ALDEC 20 decanter centrifuge, designed for continuous solid-liquid separation and sludge dewatering in industrial processes.

The machine is equipped with the original centrifuge body, stainless steel process section, drive motor and base frame. The unit was removed from service and has been stored indoors.

According to the nameplate:
- Drum diameter: 280 mm
- Maximum drum speed: 4,400 rpm
- Maximum solids density: 1.2 kg/dm3
- Process temperature range: 0°C to 100°C

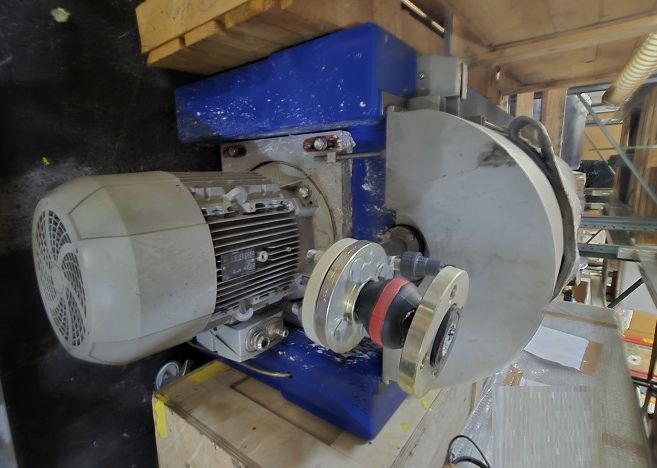

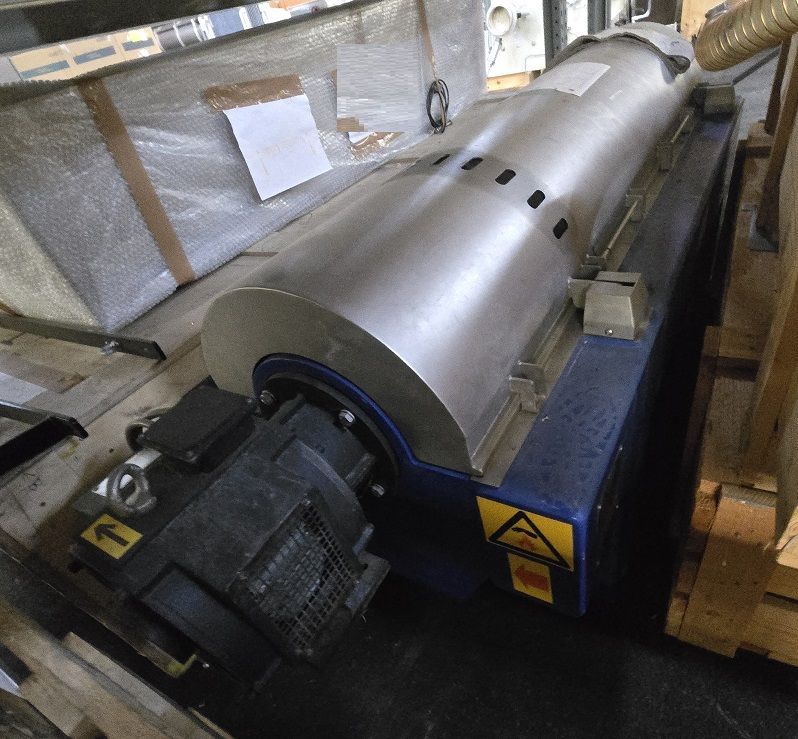

The machine is offered as shown in the photos.

Included
- Alfa Laval ALDEC 20 decanter centrifuge
- Main drive motor
- Base frame
- Process housing and connections

Not Included
- Control cabinet
- Frequency inverter / VFD
- Process piping
- Additional accessories not shown

Typical Applications
- Sludge dewatering
- Wastewater treatment
- Industrial effluent treatment
- Solid-liquid separation
- Water recovery systems

Decanter Centrifuge Throughput Guidelines
for small to medium throughput rates. The newer Alfa Laval nomenclature specifies an inflow range of approximately 1.3 m3/h for the smaller ALDEC 20 in a standard sludge dewatering application.

Medium Typical Throughput
Sewage sludge dewatering 1–5 m3/h
Industrial sludge 1–8 m3/h
Thin suspensions 5–15 m3/h
Process water with low solids content up to approx. 20 m3/h
