Alfatek TBT 28.32.6 Elvira, Filling triblock

Production (hour): 8.000 bph
Direction: Clockwise

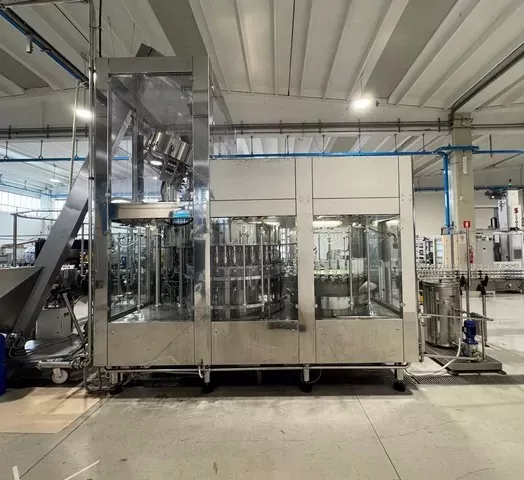

A machine designed for filling and capping glass and PET containers.
This equipment has an hourly output of 8,000 bottles per hour (bph)
with 0.750-liter bottles and operates in a clockwise direction.

RINSER
The rinser section is equipped with:
28 grippers
Electric height adjustment of the carousel
Fixed nozzle
Number of treatments: 1
Type of treatments: possibility to use air or water
Recirculation tank

FILLER
The filler features:
32 valves
Electric height adjustment of the tank
Filling type: light pressure in the tank and vacuum in the bottle
Mechanical valves
Automatic level adjustment via an electromechanical system

CAPPER
The capper consists of:
6 heads
Types of caps handled: aluminum screw cap, plastic press-on cap, plastic mushroom cap
Electric height adjustment of the head
Screw and press-on cap sizes specific for various applications
