Allibe board paper machine 2500 mm
Ref :
1695862-2-CP
Condition :
Used
Manufacturer :
Allibe
Type :
board paper machine
Width :
2500 mm
Gramages Range ( Gsm ) :
-
Capacity :
-
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
07 Nov. 2017

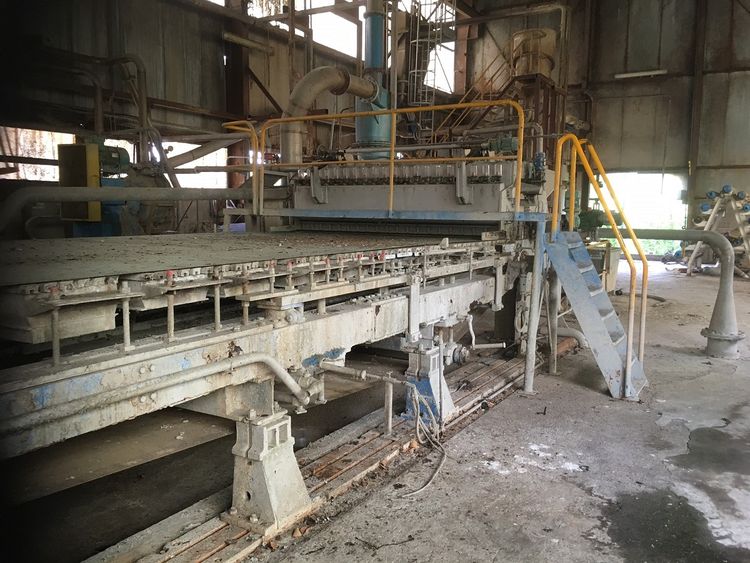

2500 mm Allibe Board Paper Machine
Width: 2500 mm
Speed: 350-400 m/min
Headbox by Allibe
Wire section
Press section composed of 3 sections: 1st suction roll, 2nd and 3rd full roll (120 Kg/cm)

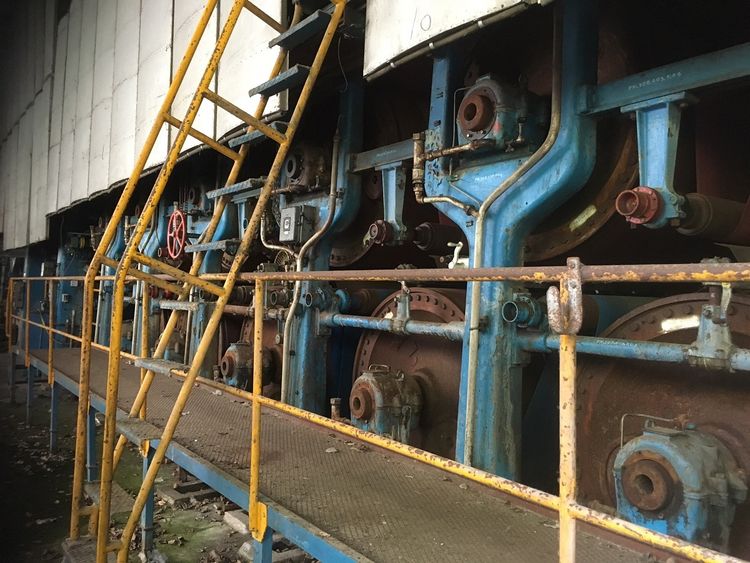

Pre-Drying section composed of:
-18 dryers "on bush bearings" (diameter 1500 mm, 8 bar)
-8 dryers with ball bearings (diameter 1500 mm, 8 bar)
-1 MG Cylinder (diameter 5000 mm, 2.5 bar)
Post-Drying section: already sold
Some stock preparation parts included
