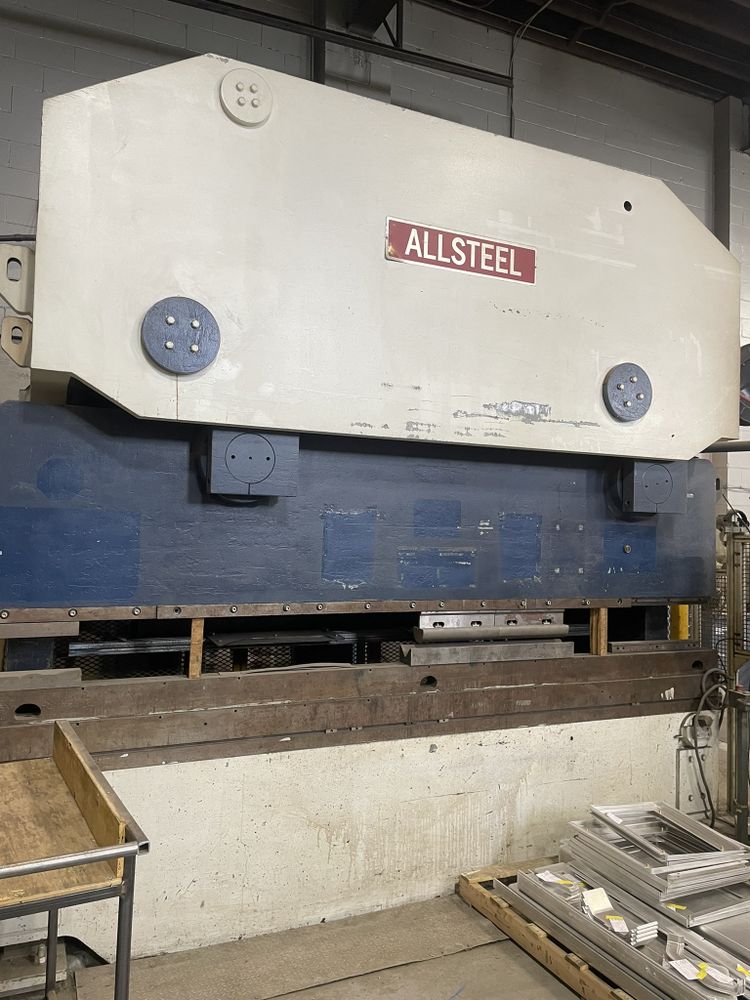

Allsteel 400-12 400 tons

Press force: 400 tons
Overall bending length: 144″
Distance between uprights: 126″
Stroke length: 0–12″ (variable)
Open height: 19″
Throat height: 10″
Table width: 7″
Pressing speed: 0.17–0.4 in/sec
Approach speed: 1.25 in/sec
Maximum travel of back gauge: 24″
Distance floor to top of bed: 34″
Pit required: Yes (extends approx. 20″ below floor)
Motor: 40 HP
Machine weight: 46,000 lbs
Machine dimensions: 168″ × 80″ × 140″

3-axis Cybelec 300 control (Y, X, R)
Light curtains
Side guarding
Lower die block
Foot pedal with E-stop
