Aloka, Hitachi F37

Hitachi Aloka F37 thoroughly simple and compact.
As a user-friendly diagnostic ultrasound system full of functional and
ergonomic features, F37 is ready to be your partner.

F37's simple operational features provide an easy and smooth workflow.
The necessary controls for routine examinations are intuitively laid out,
with high priority on reducing the examiner's operation steps.
Imaging features inherited from higher-class models provide a
work environment for concentrated examinations.

Compact and Practical Design
Lightweight, small footprint, and ergonomic design: these features of
the F37 enable nimble transport and comfortable examinations.
The sophisticated 3E Platform is what makes the small size of
the Hitachi Aloka F37 possible and because many functions are
software based, the system is not only compact but also
provides faster processing, lower power consumption,

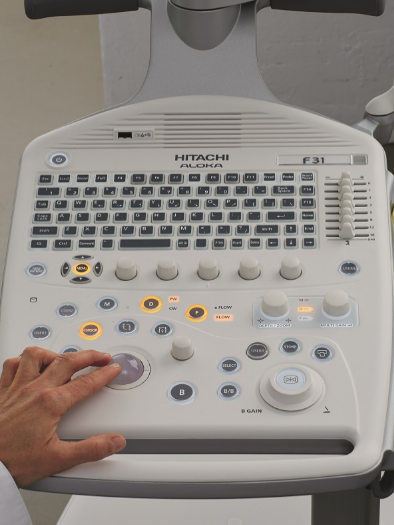

and future upgradeability. Naturally operate the system at
the height of writing on a desk or standing with
the height adjustable operation panel.
This panel can also be swivelled left and right.
With the flexibility of the operation panel and monitor,
optimum positions for your examinations are provided.

Cable management from the front, side and back of
the system keeps probe, power and other cables neat and tidy.

Easy Operation
Frequently used measurements can be assigned to the keyboard.
Each measurement item can then be activated with a single action,
simply by pressing the assigned key. Especially in examinations where
multiple measurements are done this provides a very smooth workflow.

Data Management
Stable practical use is supported by the Hitachi Aloka F37
large capacity HDD.
Acquired image and video data can be stored as digital data. Reconstruction using FAM can also be done with stored line data.
Reports for measurements can easily be displayed for a variety of
examinations in various clinical applications.

Dual Dynamic Display (DDD)
A B-mode image and Flow mode image can be displayed side-by-side in
real time. In Hitachi Aloka F37 the DDD assists easy anatomical
understanding of blood flow.
The function can be used with both power flow and eFLOW.

More features for clear imaging
Trapezoidal Scan
Broadband Harmonics (BhH)
Adaptive Image Processing (AIP)
Spatial Compound Imaging (SCI)
High frame rate zoom
Wide range of presets
High performance LCD monitor

ADDITIONAL INFORMATION
WEIGHT 65 kg
DIMENSIONS 43 x 58 x 144,5 cm
MEDICAL SPECIALTY Cardiology, Endocrinology, Gastroenterology,
Neurosurgery, Obstetrics - Gynecology, Radiology, Rheumatology,
Surgery, Urology, Veterinary
COLOR Color Flow Mode, eFLOW
DOPPLER CW Color Doppler, PW Color Doppler, Real-time Doppler Auto Trace
DISPLAY TECHNOLOGY LCD Monitor
IMAGE QUALITY High Definition (1024 x 768), SXGA (1280 x 1024)
SCREEN DIMENSIONS 15" inches, 17" inches
CONNECTIVITY Analog Video Input/Output, DICOM, DVI-D,
thernet, USB 2.0, DVD External
PRINT TYPE Ethernet Color Printer, Thermal B/W Printer, USB Color Printer
HEAD PORTS Electronic scanning probes: 3 active
SYSTEM PORTABILITY Wheeled

Compatible Probes
Convex
Aloka UST-9123 Abdominal Convex
Aloka UST-9130 Abdominal Convex
Aloka UST-9115 Abdominal Convex
Aloka UST-9102-3.5 Abdominal Convex
Aloka UST-9136U Abdominal Convex
Aloka UST-9135P Biopsy Convex
Aloka UST-9133 Intraoperative Convex
Aloka UST-987 Intraoperative Convex
Aloka UST-995-7.5 Intraoperative Convex
Aloka UST-MC11-8731 Intraoperative Convex

Endocavity
Aloka UST-9124 Endocavity Vaginal
Aloka UST-9118 Endocavity Vaginal
Aloka UST-984-5 Endocavity Vaginal
Aloka UST-676P Endocavity Rectal

Linear
Aloka UST-5413 Vascular Linear
Aloka UST-5417 Vascular Linear
Aloka UST-568 Vascular Linear
Aloka UST-5712 Vascular Linear
Aloka UST-5045P Biopsy Linear
Aloka UST-5550 Laparoscopic Linear
Aloka UST-536 Intraoperative Linear
Aloka UST-579T-7.5 Intraoperative Linear

Phased Aray
Aloka UST-5299 Cardiac Phased Array
Aloka UST-5298 Pediatric Phased Array
Aloka UST-5293-5 TEE Cardio

RT-3D (4D)
Aloka ASU-1010 3D/4D Convex
Aloka ASU-1014 3D/4D Convex
Aloka ASU-1012 3D/4D Vaginal

Bi-Plane
Aloka UST-672-5/7.5 Endocavity Rectal
Independent CW Doppler
Aloka UST-2265-2 Independent CW Doppler
