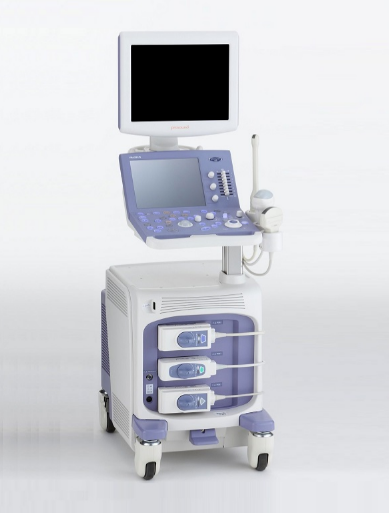

Aloka Prosound Alpha 6

Aloka Prosound Alpha 6 Unprecedented performance with
a broad range of applications - the compact ProSound 6 is at your service.
Our ProSound series has a well-established reputation in hospitals and
medical facilities throughout the world. The exceptional performance of
the higher-end ProSound systems is available in
the Aloka Prosound Alpha 6, delivering outstanding image quality,
versatility and ergonomics.

Powerful
Incorporation of technologies developed for our higher-end models of theProSound series.
High-definition, high quality imaging for a wide range of applications.
Excellent image processing functions: Broadband Harmonics (BbH),

Adaptive
Image Processing (AIP), Spatial Compound Imaging (SCI).
High blood flow definition: eFLOW
A wide variety of analytical software including eTRACKING and TDI Analysis.

User Friendly
The operation panel's height adjustment mechanism allows for
easier operation and enhancement of examination efficiency.
Large touch panel screen boosting visibility and easier operation.
Optimized switch layout according to frequency of use.

Compact
Small main body size accomplished by integration of electronic circuits.
Mobility, easy handling and portability assured by the light weight and
compact size.

Incredible Imaging Technology Bringing About High Versatility
Broadband Harmonics(BbH)
Adaptive Image Processing (AIP)
Spatial Compound Imaging (SCI)
Image Optimizer
eFLOW
Confident Observations and Measurements For Both Mother and Child
Spatio-temporal Image Correlation (STIC)
Dynamic Slow-motion Display (DSD)
Real-time Free Angular M-mode (FAM)
Automated Nuchal Translucency (NT) Measurement

Cardiovascular
ProSound 6 offers a full complement of various analyzing software.
Dual Dynamic Display (D.D.D.), Free Angular M-mode (FAM),
and Doppler Auto Trace make daily examinations more comfortable.
Software such as Asynchrony Study, Tissue Doppler Imaging (TDI),
Strain, eTRACKING provide more detailed, quantitative evaluation.
The ProSound 6 is ready for the fundamentals and more.

Automated IMT Measurement
eTRACKING (Echo Tracking)

ADDITIONAL INFORMATION
WEIGHT 70 kg
DIMENSIONS 42 x 70 x 130 cm

MEDICAL SPECIALTY
Cardiology, Gastroenterology, Neurosurgery, Obstetrics - Gynecology,
Radiology, Rheumatology, Surgery, Urology, Veterinary

COLOR Color Flow Mode, eFLOW, PowerFlow
DOPPLER CW Color Doppler, PW Color Doppler,
Real-time Doppler Auto Trace
DISPLAY TECHNOLOGY LCD Monitor
IMAGE QUALITY SXGA (1280 x 1024)
SCREEN DIMENSIONS 15" inches
CONNECTIVITY 10.4" inches
DICOM, DVI-D, Ethernet, USB 2.0, DVD External
PRINT TYPE Ethernet Color Printer, Thermal B/W Printer, USB Color Printer
HEAD PORTS Electronic scanning probes: 3 active
SYSTEM PORTABILITY Wheeled

Compatible Probes
Convex
Aloka UST-9123 Abdominal Convex
Aloka UST-9127 Abdominal Convex
Aloka UST-990-5 Abdominal Convex
Aloka UST-9136U Abdominal Convex
Aloka UST-9104-5 Intraoperative Convex
Aloka UST-9133 Intraoperative Convex
Aloka UST-987 Intraoperative Convex
Aloka UST-995-7.5 Intraoperative Convex
Aloka UST-MC11-8731 Intraoperative Convex
Aloka UST-91321 Intraoperative Convex
Aloka UST-9132T Intraoperative Convex

Endocavity
Aloka UST-9124 Endocavity Vaginal
Aloka UST-984-5 Endocavity Vaginal
Aloka UST-676P Endocavity Rectal

Linear
Aloka UST-5413 Vascular Linear
Aloka UST-5524-7.5 Vascular Linear
Aloka UST-5548 Vascular Linear
Aloka UST-568 Vascular Linear
Aloka UST-5710 Small Parts Linear
Aloka UST-5542 Vascular Linear
Aloka UST-5045P Biopsy Linear
Aloka UST-5550 Laparoscopic Linear
Aloka UST-5536-7.5 Laparoscopic Linear
Aloka UST-533 Intraoperative Linear
Aloka UST-536 Intraoperative Linear
Aloka UST-536 Intraoperative Linear
Aloka UST-5534T-7.5 Intraoperative Linear
Aloka UST-579T-7.5 Intraoperative Linear

Phased Aray
Aloka UST-5299 Cardiac Phased Array
Aloka UST-5298 Pediatric Phased Array
Aloka UST-5293-5 TEE Cardio
Aloka UST-52114P Intraoperative Burr-Hole
Aloka UST-52109 Laparoscopic Phased Aray

RT-3D (4D)
Aloka ASU-1010 3D/4D Convex
Aloka ASU-1012 3D/4D Vaginal

Bi-Plane
Aloka UST-672-5/7.5 Endocavity Rectal
Independent CW Doppler
Aloka UST-2265-2 Independent CW Doppler
Aloka UST-2266-5 Independent CW Doppler
