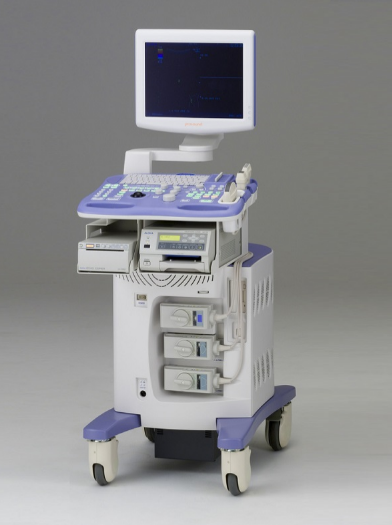

Aloka Prosound SSD-3500SX

Aloka Prosound SSD-3500SX - Diagnostic Ultrasound System
A Platform for Digital Pure Beam Imaging
The strengths of the Aloka Prosound SSD-3500SX - Diagnostic Ultrasound
include clear imaging, great versatility, user-friendly design,
and comprehensive data management. Enjoy the functions and
performance you require in your clinical practice.

The high performance of the 3500SX stems from the state-of-
the-art technologies developed for our premium performance
ProSound systems. The Aloka Prosound SSD-3500SX offers
great versatility over an extensive range of clinical applications with
abundant specialty probes and flexible system architecture.

The system can be customized according to your specific application needs,
offering greater simplicity of operation. The ProSound 3500SX proves its
worth in your clinical practice.

Advancing Digital Technology
In pursuit of high image quality for more detailed examination
Tissue Harmonic Echo (T.H.Ε.)
Multi-Beam Processing
12 bit A/D Converter
Diversified Specialty Probes
PixelFocus

The Brilliance of Life in 4D Images
Easy-to-understand images promote dialog between doctor and mother
Real-time 3D (4D)
Variable view point
Multi-planar display
Abdominal 4D probe
Transvaginal 4D probe

Provides the Images You Want to See
Furnished with functions to help provide clinically useful images
High-resolution Zoom
Free Angular M-mode (FAM)
Dual Dynamic Display (D.D.D.)
Quint Frequency Imaging (Q.F.I.)

Simple and Easy to Use
For higher patient throughput and efficient data management
Customizable Operation Panel
Ergonomic design

Supports Comprehensive Data Management To manage patient information and image data flexibly
Sophisticated Measurement / Report functions
Digital Data Management with Multiple Media
Connectable with DICOM network
Superb Image Quality

ADDITIONAL INFORMATION
WEIGHT 100 kg
DIMENSIONS 49 x 80 x 135 cm
MEDICAL SPECIALTY Endocrinology, Gastroenterology,
Neurosurgery, Obstetrics - Gynecology, Rheumatology, Urology, Veterinary
COLOR Color Flow Mode, eFLOW
DOPPLER PW Color Doppler, Real-time Doppler Auto Trace
DISPLAY TECHNOLOGY LCD Monitor
IMAGE QUALITY High Definition
SCREEN DIMENSIONS 15° inches
CONNECTIVITY Analog Video Input/Output, DICOM, Ethernet,
USB 2.0, DVD External, VGA
PRINT TYPE Ethernet Color Printer, Thermal B/W Printer, USB Color Printer
HEAD PORTS Electronic scanning probes: 3 active
SYSTEM PORTABILITY Wheeled

Compatible Probes
Convex
Aloka UST-979-35 Abdominal Convex
Aloka UST-990-5 Abdominal Convex
Aloka UST-9123 Abdominal Convex
Aloka UST-9127 Abdominal Convex
Aloka UST-9128 Abdominal Convex
Aloka UST-978-3.5 Abdominal Convex
Aloka UST-9101-7.5 Abdominal Convex
Aloka UST-9102-3.5 Abdominal Convex
Aloka UST-9121 Abdominal Convex
Aloka UST-9136U Abdominal Convex
Aloka UST-9113P Biopsy Convex
Aloka UST-987 Intraoperative Convex
Aloka UST-9133 Intraoperative Convex
Aloka UST-995-7.5 Intraoperative Convex
Aloka UST-MC11-8731 Intraoperative Convex
Aloka UST-9104-5 Intraoperative Convex

Endocavity
Aloka UST-9124 Endocavity Vaginal
Aloka UST-984-5 Endocavity Vaginal
Aloka UST-9112-5 Endocavity Vaginal
Aloka UST-670P Endocavity Rectal
Aloka UST-676P Endocavity Rectal

Linear
Aloka UST-5413 Vascular Linear
Aloka UST-5524-7.5 Vascular Linear
Aloka UST-568 Vascular Linear
Aloka UST-5542 Superficial Linear
Aloka UST-5546 Small Parts Linear
Aloka UST-5548 Vascular Linear
Aloka UST-5710 Small Parts Linear
Aloka UST-5045P-3.5 Biopsy Linear
Aloka UST-533 Intraoperative Linear
Aloka UST-534 Intraoperative Linear
Aloka UST-536 Intraoperative Linear
Aloka UST-579T-7.5 Intraoperative Linear
Aloka UST-5534T-7.5 Intraoperative Linear
Aloka UST-5536-7.5 Laparoscopic Linear

Phased Aray
Aloka UST-5299 Cardiac Phased Array
Aloka UST-5298 Pediatric Phased Array
Aloka UST-5293-5 TEE Cardio
Aloka UST-5268P-5 Intraoperative Phased Array
Aloka UST-52109 Laparoscopic Phased Array

RT-3D (4D)
Aloka ASU-1009 3D/4D Convex
Aloka ASU-1003 3D/4D Vaginal

Bi-Plane
Aloka UST-672-5/7.5 Endocavity Rectal
Aloka UST-677P Endocavity Rectal
