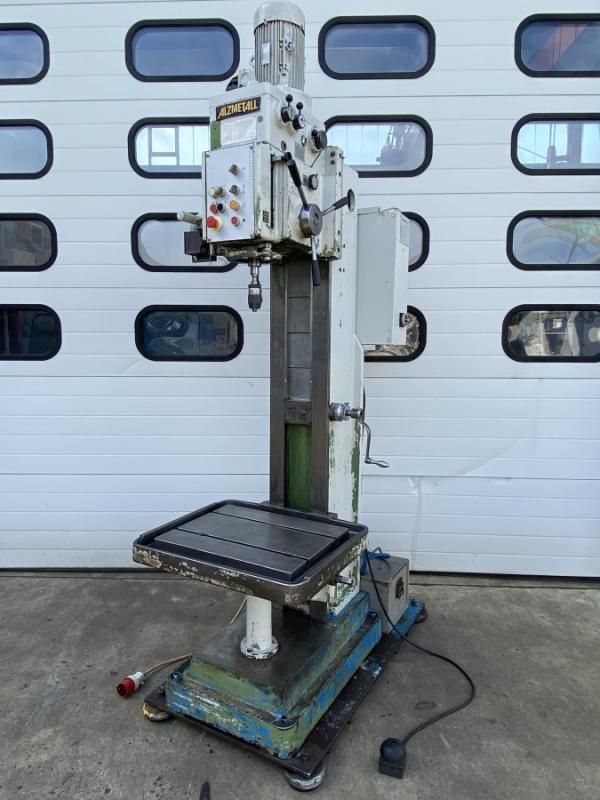

Alzmetall AB 40 ST 2500 rpm

Drilling capacity: 40 mm
Spindle taper: MK4
Throat depth: 325 mm
Quill stroke: 200 mm
Table size: 740 x 460 mm
Drill head height adjustment: 700 mm
Maximum spindle to table distance: 1015 mm
Spindle speed range: 56 - 2500 rpm
12 spindle speeds
Automatic feed rates: 0.15 / 0.2 / 0.3 / 0.36 mm/rev
Motor power: 4 kW
Power supply: 380 V / 50 Hz
Drilling and tapping unit
Right and left rotation
Electrical foot switch for reverse rotation
Hydraulic rapid quill feed
Semi-automatic cycle
Drill head height adjustment by handwheel
Table height adjustment by handwheel
Table height range: 740 - 1170 mm
Coolant system
Control cabinet
Mounted on steel plate: 1300 x 750 x 15 mm
Machine feet
Quick-action drill chuck: 3 - 16 mm
Operating manual
Electrical diagram
Overall height with drill head raised: 2750 mm
Machine dimensions: 1400 x 850 x 2300 mm
Weight: 1250 kg
Good condition
