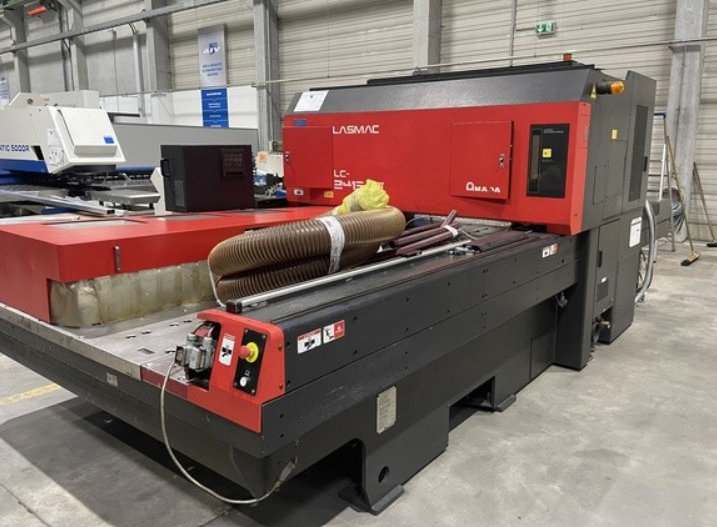

Amada Alpha Laser 2415 III CNC Controller

X-axis travel: 2,520 mm
Y-axis travel: 1,550 mm
Z-axis travel: 300 mm
Cutting speed: 20 m/min
Feed speed X/Y/Z: 80/80/60 m/min
Table length: 5,040 mm
Table width: 1,550 mm
Maximum plate weight: 330 kg
Positioning accuracy: ±0.01 mm/500 mm
Repeatability: ±0.005 mm
Table height: 820 mm
Loading opening: 550 × 1,550 mm
Compressed air: 6/20 bar
Total power requirement: 10 kW
Machine weight: Approx. 6.5 t
Machine dimensions: Approx. 2.5 × 5.7 × 2.3 m
Turbo blower replaced at 36,000 operating hours
Compressed air dryer: Alphapac 0015 SP
Basement fume extraction: Vario T 1.5A
Air conditioning unit: RIEDEL PC 315.21-NE-LAS
Laser safety class: Class 1
Regularly serviced
