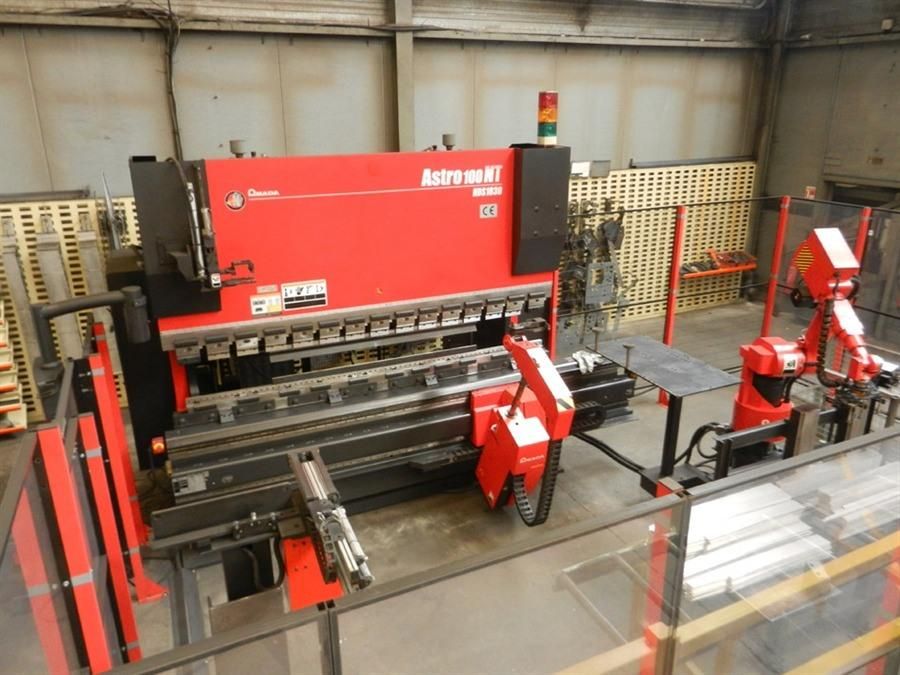

Amada ASTRO 100T x 3220 CNC Robot Bending Cell
Ref :
2732473-3-CP
Condition :
Used
Manufacturer :
Amada
Model :
ASTRO
Pressure :
100T x 3220 CNC Robot Bending Cell
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force 100 tonnes
Maximum Bend Length 3220 mm
Backgauge CNC
Control Astro Cam II
Passage Between Uprights 2700 mm
Maximum Stroke 200 mm
Maximum Distance Between Table and Ram 500 mm
Throat Depth 420 mm
Table Width 180 mm
Locking Speed 200 mm/s
Working Speed 20 mm/s
Return Speed 200 mm/s
Machine Length 8042 mm
Machine Depth 4735 mm
Machine Height 3194 mm
CNC Automatic Bending Cell Full Loading & Unloading
Pressbrake HDS 1030NT
Controlled Axes 9
X1/X2 Travel 600 mm
R Axis Travel 250 mm
