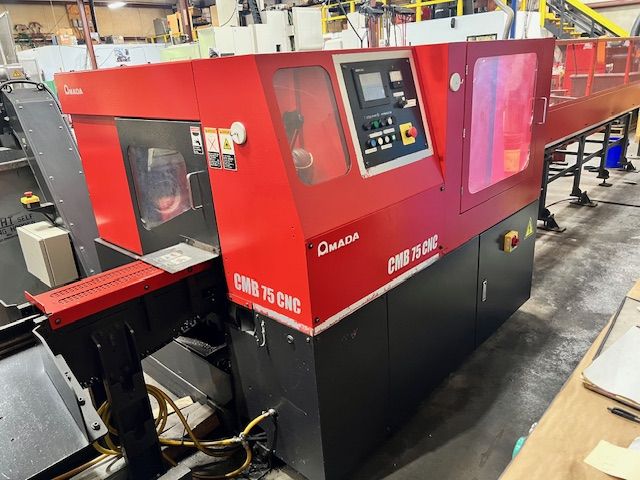

Amada CMB 75 COLD SAW CNC CONTROL

Blade motor 10 HP
Blade speed 56 - 225 RPM
Blade size 11.22" x 1.57" x .079"
Cut-off length .394" - 236.22"
End trimming length .394" - 1.57"
Horizontal clamping pressure 3,417 lbs
Vertical clamping pressure 876.76 lbs
Stroke 28.1"
Material length .394" - 472.44"
Rectangular material edge length .394" - 2.36"
Round material diameter .394" - 3"
Machine dimensions 65.6" x 82.7" x 62.3"
Machine weight 4,409 lbs

Features
Cut-In Control CNC
LCD Touch Screen
Automatic Bar Feed
Chip Conveyor
J.F. Berns Servo Auto Champ 2 Chamfering Machine
Auto Loader
High Capacity Table
Delivery Chute
Short Cycle Time
High Precision Cutting (+/- 0.0004")
