Amada COMA 567 55 T

AMADA COMA 567
Year: 1992

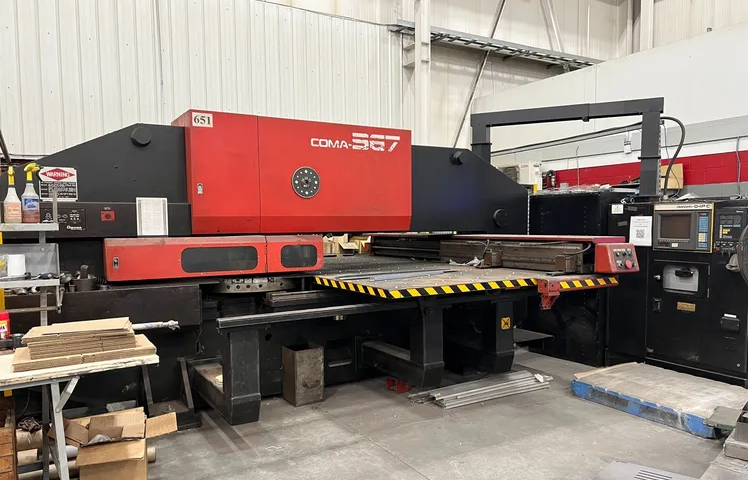

Amada Turret Punch Press Coma 567
Tonnage 55 T
# Turret Stations 58
Control CNC (Fanuc 04PC)

Capacity 55 Tons
Sheet Size 60 x 72
Thickest Material 3/8 "
Max Hole Diameter 4.5"
Number of Turret Stations 58 with 2-A/I
Strokes Per Minute 300
Axis Speed 2000 IPM
Hits Per Min. 1" centers 200
Control Model Fanuc 04PC
Drive motors AC Servo
Smallest Programmable Increment .001"
Power Requirements 208/230v /60/3 phase

· Automatic repositioning
· Absolute or incremental
· Metric or inch dimensional programmable
· Precision ground recirculating ball lead screws for X & Y Axis
· X & Y Carriages driven by AC servo motors
· Crash proof clamp sensors
· Hardened and ground turret index pins and bushings
· Safety interlocks & overrun protectors with all step control prevents accidents
· 58 Station auto-index thick type turret for long body tools
· Fanuc 04PC control
· Strip miss
· Tool hoist
· CRT screen on control
· RS 232 computer port
· Editing feature
. Tooling Package Included
· Terms: 10% Deposit with order, Net Before Shipment
