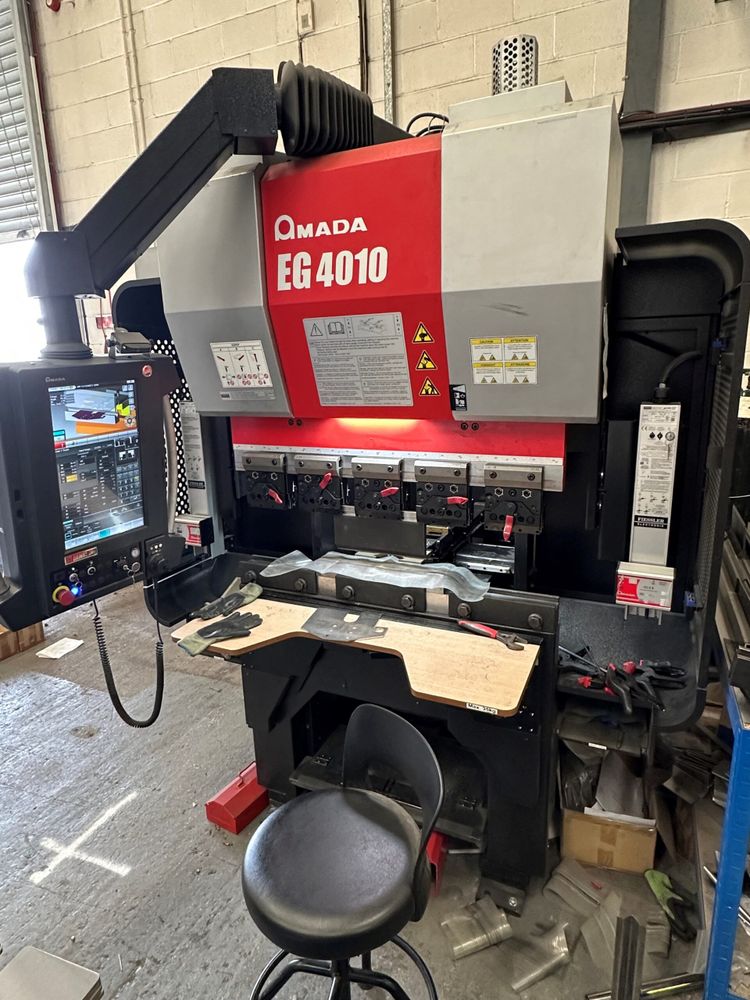

Amada EG-4010 Electric Press Brake, 5 axis 40 tonnes

Tonnage: 40 tonnes
Beam length: 1050 mm
Distance between frames: 710 mm
Open height: 420 mm
Upper beam stroke: 150 mm
Working height: 980 mm (without die holder)
Power consumption (Y axis servo motor): 5.3 kW
Oil capacity: 0 L
Approach speed: 220 mm/s
Bending speed: 25 mm/s (depending on Vee size)
Return speed: +/- 0.001 mm
Noise level: 65.5 – 67.6 dB
Machine mass: 2700 kg
Machine length: 1770 mm
Machine width: 1980 mm
Machine height: 2371 mm (with 50 mm high block)
Operating stroke X axis: 300 mm
Operating stroke R axis: 150 mm
Operating stroke Z axis: 622 mm
Speed X axis: 1000 mm/s
Speed R axis: 333 mm/s
Speed Z axis: 1000 mm/s
Accuracy X axis: +/- 0.003 mm
Accuracy R axis: +/- 0.05 mm
Accuracy Z axis: +/- 0.02 mm
Control type: AMNC 3i (automatic off-line programming ready)
Display: Interactive touch screen
