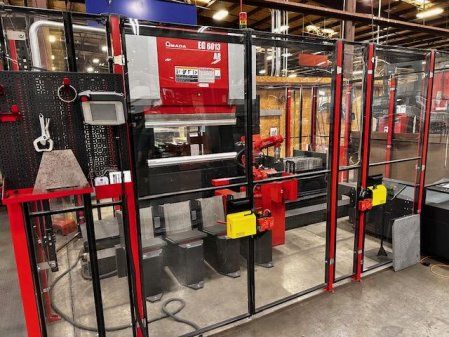

Amada EG6013ARS 67 Ton

AMADA EG6013ARS
2021

Maximum tonnage capacity: 67 Ton
Maximum bending length: 53.1"
Stroke length: 6"
Open height: 16.5"
Approach speed: 8.7"/sec
Bend speed: 1"/sec
Return speed: 8.7"/sec
Floor space: 211" L x 154" W x 105" H
Weight of brake: 8,200 lbs

Robot axis configuration: 6-Axis
Robot carriage axis: 120"
Max part weight: 22 lbs
Maximum reach P-point: 39.25"
Tool holder length: 49.2"
Max tool length: 31.5"
Number of tools: 10

Tool clamp punch/die: AMTS Type III-S
Tool holder length: 49.2"
Tool: Modular tool and STC spec. Height = 6"

Tool handling: Robot
Stocker length: 31.5"
Number of stockers: 10 (total 20 punch + die)
Stocker location: Right-hand side
Tool weight total: 635 lbs

Load type: Loading flat (12" x 12") or vertical (12" x 6.7")
Unload type: Drop in box or pass through conveyor

Dual electric servo power drive
Amada 3i CNC control with vertical 18.5" multi-tool display
Automatic tool changer
Yaskawa high precision 7-axis bending robot
