Amada EMK 3610 NT 33 tons

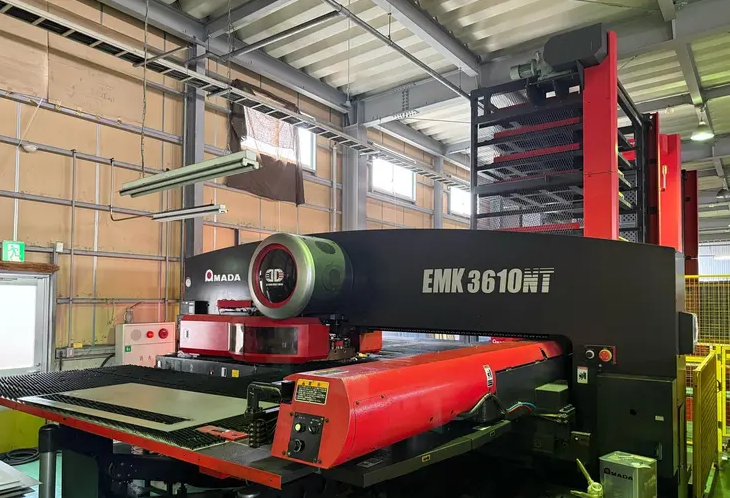

AMADA EMK 3610 NT
Year: 2009

Capacity 33 tons
Sheet size 98.425" x 60"
Largest punched hole 4.5"
Turret stations 58
Auto-index stations 4
Feed clearance 0.984"
Stroke length 1.45" max
Hits per min (X, 0.039" pitch, 0.197" stroke): 780 HPM
Hits per min (Y, 0.039" pitch, 0.197" stroke): 515 HPM
Hits per min (X, 1" centers, 0.197" stroke): 500 HPM
Hits per min (Y, 1" centers, 0.197" stroke): 380 HPM
Marking hit rate X: 1800 HPM
Marking hit rate Y: 830 HPM
Linear positioning speed X: 3937 IPM
Linear positioning speed Y: 3150 IPM
Control model Fanuc AMCF-F (NT)
Drive motors AC servo
Smallest programmable increment 0.001"
Machine weight 54,000 lbs

AC servo driven ram
Built-in microprocessor
Standard pattern programming software
Diagnostic system
On-screen G-code simulator
Intelligent turret setup
Job scheduler
Stripping sensor
Automatic repositioning
Sheet jam detector
Metric/inch programming
Precision ball lead screws X and Y
Crash-proof clamp sensors
Hardened turret pins and bushings
Safety interlocks and overrun protection
Air blow tooling
Power vacuum die
Brush table
58-station thick turret with 4 auto-index

Optional:
ASR 510M load/unload tower (price upon request)
