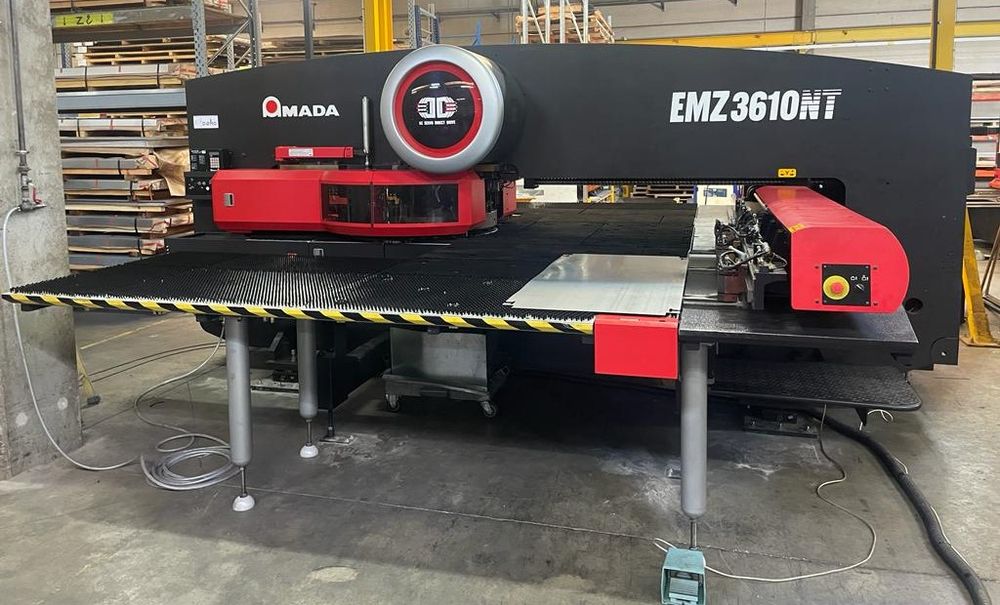

Amada EMZ 3610NT 30 ton

Press force: 30 ton
Press capacity: 196 kN
Frame type: Bridge construction
Press drive type: High-speed AC servo direct twin drive
X-axis travel: 2500 mm
Y-axis travel: 1525 mm
Maximum sheet size with auto positioning: 1525 x 5000 mm
Maximum material thickness: 4.5 mm
Maximum material weight: 150 kg
Maximum hole diameter: 114.3 mm
X-axis speed: 100 m/min
Y-axis speed: 80 m/min
Hit rate: 500 HPM at 5 mm stroke, 25.4 mm pitch
Hit rate: 780 HPM at 5 mm stroke, 1.0 mm pitch
Hit rate: 1800 HPM at 1.4 mm stroke, 0.5 mm pitch
Turret speed: 330 RPM
Punching accuracy: ±0.1 mm
Positioning repeatability: ±0.07 mm
Ram stroke length: 37 mm
CNC control: AMNC touchscreen
Data interface: Network capable
Axis drives: AC servo motors
Electrical requirement: AC 200 V, 3-phase, 27 kVA
Air pressure requirement: 5.0 kgf/cm²
Machine length: 5423 mm
Machine width: 5120 mm
Machine height: 2318 mm
Machine weight: 24,500 kg

Features / Equipment
Electric punch machine
45-station thick turret
4 auto-index stations
24 A stations
12 B stations
2 C stations
1 D station
2 E stations
Air blow tool lubrication system
Safety light guards
