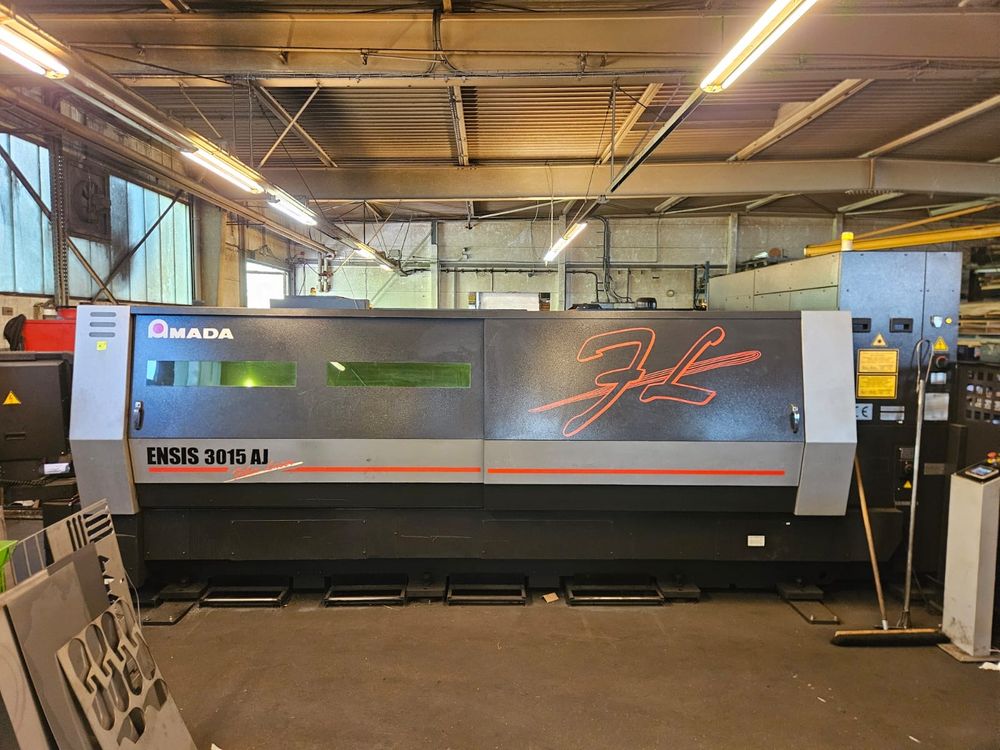

Amada ENSIS 3015 AJ 3kW Fibre Laser Machine with LST-E Shuttle Table Numerical control: AMNC 3i

Controlled axes: X, Y, Z + B axis
Axis traverse distance: 3070 x 1550 x 100 mm
Max processing dimensions: 3070 x 1550 mm
Maximum simultaneous feed rate X/Y: 170 m/min
Positioning accuracy: ±0.01 mm
Rated output: 3000 W
Low cutting hours: 23,500
Max material thickness mild steel: 25 mm with WACS / 20 mm without WACS
Max material thickness stainless: 15 mm
Max material thickness aluminium: 12 mm
Max material thickness brass: 8 mm
Max material thickness copper: 6 mm
Maximum material mass: 920 kg
Processing surface height: 940 mm
Machine length (including shuttle table): 10,136 mm
Machine width: 2,840 mm
Machine height: 2,432 mm
Machine weight: 9,100 kg
Auto nozzle changer
WACS II
Single lens processing
Front & side access
X-direction conveyor
Dust air blow
Pierce monitoring
Deep etching
Compressed air cutting
