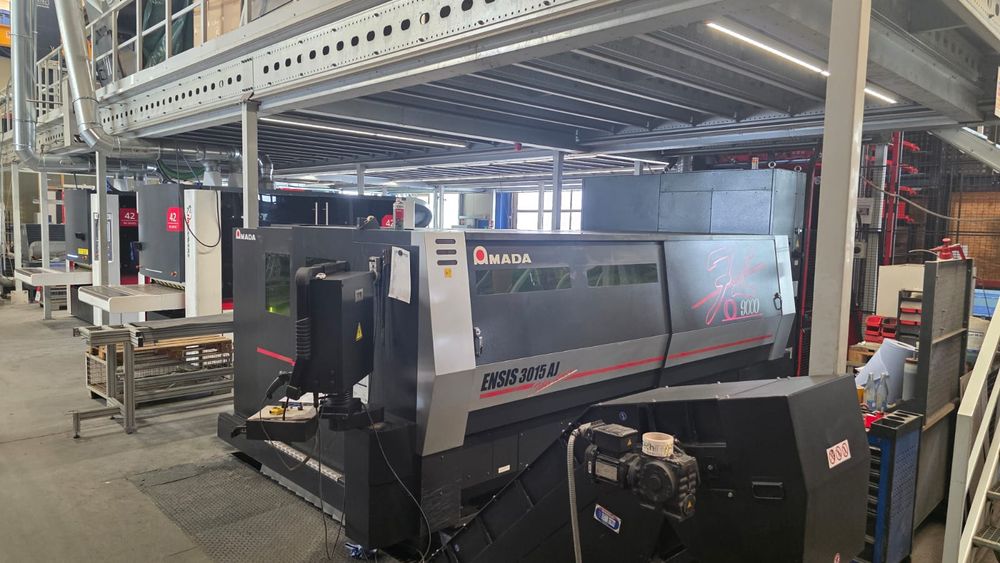

Amada ENSIS 3015 AJ 9 kW Fibre Laser with AS LUL CNC CONTROL

X-axis travel: 3070 mm
Y-axis travel: 1550 mm
Z-axis travel: 100 mm
Controlled axes: X, Y, Z, B

Max material thickness mild steel (with WACS): 25 mm
Max material thickness mild steel (without WACS): 20 mm
Max material thickness stainless steel: 25 mm
Max material thickness aluminium: 25 mm
Max material thickness brass: 18 mm
Max material thickness copper: 12 mm
Max processing dimensions: 3070 mm x 1550 mm
Maximum simultaneous feed rate X/Y: 170 m/min
Positioning accuracy: ±0.01 mm
Maximum material mass: 920 kg
Rated output: 9000 W
Processing surface height: 940 mm
Numerical control model: AMNC 3i

Equipment
Auto nozzle changer
WACS II
Single lens processing
Front and side access
X-direction conveyor
Dust air blow
Pierce monitoring
Compressed air cutting
