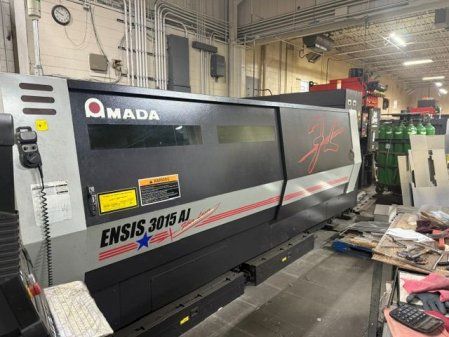

Amada ENSIS-3015AJ Fiber Laser CNC Control: AMNC 3i

X Axis Travel: 121"
Y Axis Travel: 61"
Z Axis Travel: 3.93"
Maximum Sheet Size: 120" x 60"
Maximum Positioning Speed X Axis: 4,724 IPM
Maximum Positioning Speed Y Axis: 4,724 IPM
Maximum Positioning Speed 45° Vector: 6,693 IPM
Maximum Z Axis Speed: 4,724 IPM

Repeatability: ±0.0002"
Maximum Material Weight: 2,000 lbs

Control Type: CNC
Control: AMNC 3i
Axis Control: Simultaneous 3-axis
Drive Motors: AC servo motors

Laser Resonator Model: AJ2000
Laser Type: Fiber
Laser Technology: ENSIS
Laser Output Power (CW): 2 kW
Laser Peak Pulse Power: 2 kW
Laser Wavelength: 1.08 microns
Laser Power Stability: ±2%
Laser Output Mode: Multimode
Beam Divergence: < 3 mm-mrad
Pulse Frequency Range: 1–10,000 Hz
Pulse Duty Range: 0–100%

Maximum Mild Steel Thickness: 0.875"
Maximum Stainless Steel Thickness: 0.375"
Maximum Aluminum Thickness: 0.312"

Assist Gas Ports: 4
Gas Pressure Control: NC controlled

Electrical Supply: 200 V
Electrical Phase: 3 Phase
Electrical Frequency: 60 Hz
Maximum Power Consumption: 9 kW
Maximum Electrical Capacity: 12 kVA

Chiller Water Flow Requirement: ≥ 41 L/min

Features / Equipment:
ENSIS cutting technology
Stationary table design
Chiller
Dust collector
Safety interlock system
