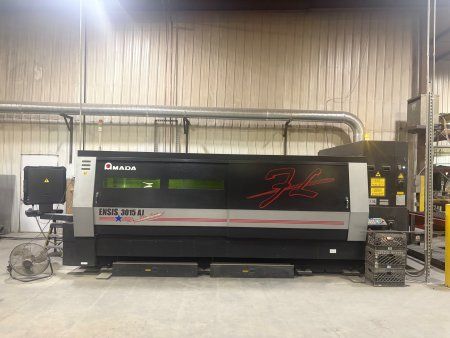

Amada ENSIS-3015AJMII FIBER LASER AMNC 4i

Installed: 2023
X-Axis Travel: 121"
Y-Axis Travel: 61"
Z-Axis Travel: 3.93"
Positioning Speed per Axis: 4724 IPM
45 Degree Vector Speed: 6693 IPM
Z-Axis Speed: 4724 IPM
Control: AMNC 4i
X, Y, Z Simultaneous 3-Axis Control
Focus Lens Control
B-Axis Control
Laser Power Control
Compact Flash Drive
Maximum Sheet Size: 120" x 60"
Maximum Material Weight: 2000 Lbs.
Maximum Mild Steel Thickness: 1.0"
Maximum Stainless Steel Thickness: 0.500"
Maximum Aluminum Thickness: 0.500"
Spindle Drive Motors: Fanuc AC Servo Motors
Laser Resonator Model: AJ3000 with ENSIS Technology
Resonator Type: LD Excited Yb Fiber
Laser Output Power: 3 kW
Laser Wavelength: 1.08 Microns
Laser Power Modes: CW, Gated Pulse
Laser Beam Output: Multimode
Assist Gas: 4 Ports with NC Pressure Control
Chiller Water Requirement: ≥ 41 L/Minute
Electrical Power Consumption: 9 kW
Electrical Requirements: 200V
3 Phase
60 Hz
Repeatability: +/- 0.0002"
Chiller
Dust Collector
