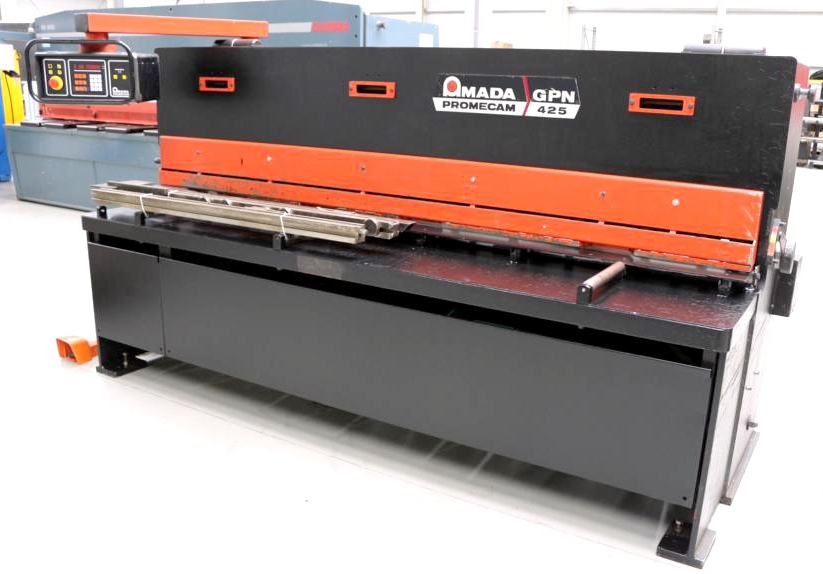

Amada GPN 425

Sheet width 2540 mm
Plate thickness 4.0 mm
Thickness at stainless steel 3.0 mm
Backgauge speed 100 mm/sec
Cutting angle 1°20′
Table height 855 mm
Table depth 500 mm
Strokes per minute 33–55
Hydraulic pressure max. 250 bar
Motor power 5.5 kW
Machine weight 5000 kg
Machine dimensions (L×W×H) 2960 × 1990 × 1700 mm
Control type NC
Powerful electro-hydraulic guillotine shear
NC electro-motorized backgauge
Backlash-free ball screw
Manual cutting gap adjustment with 2 levers
Pivoting control panel
Long side stop
Support arm
Rigid welded machine body
Sighting device with three mirrors
Front safety guard
Foot switch
Operating instructions (PDF)
Sheet metal holding device for thin blanks
