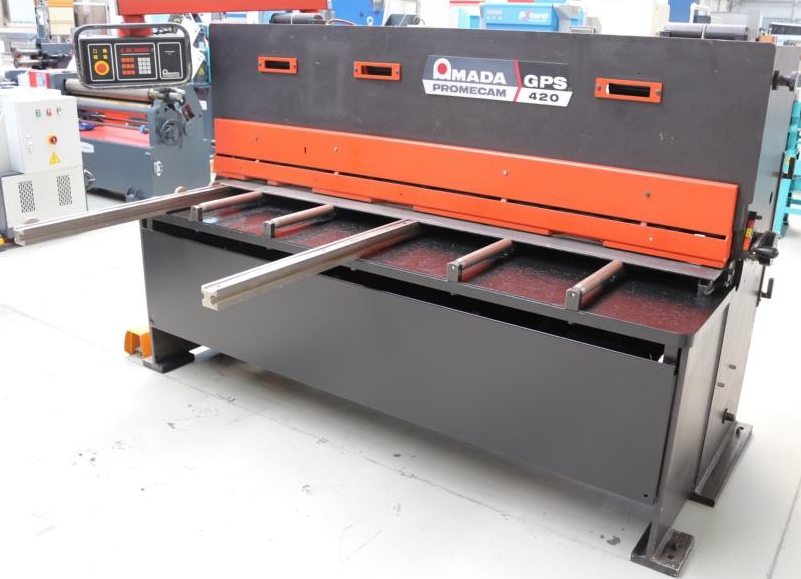

Amada GPS 420

AMADA GPS 420

Sheet width: 2040 mm
Plate thickness: 4.0 mm
Thickness on stainless steel: 3.0 mm
Number of strokes: 33–55 strokes/min
Back gauge speed: 100 mm/sec
Cutting angle: 1° 20′
Table height: 855 mm
Table depth: 500 mm
Hydraulic pressure max: 250 bar
Engine output: 5.5 kW
Machine weight approx.: 3300 kg
Dimensions L‑W‑H: 2550 × 2100 × 1700 mm
Condition: Good, well‑maintained

Powerful electro‑hydraulic guillotine shear
Pivoting NC control panel, front left
NC electro‑motorized material back gauge
Backlash‑free ball screw
Manual cutting gap adjustment with 2 levers
Long side stop
Support arm
Rigid welded machine body
Sighting device with three mirrors for marking alignment
Front safety guard (finger protection)
Rear sheet chute
Freely movable foot switch
Operating instructions included (PDF)
