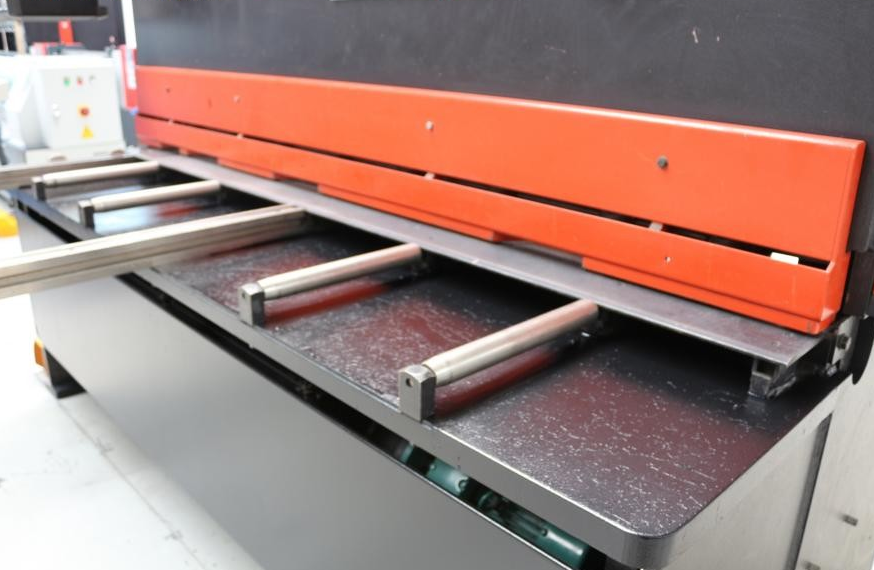

Amada GPS 420

Sheet width: 2040 mm
Plate thickness: 4.0 mm
Stainless steel thickness: 3.0 mm
Number of supports: 9
Back stop adjustable speed: 100 mm/sec
Cutting angle: 1°20′
Table height: 855 mm
Table depth: 500 mm
Number of strokes: 33–55 strokes/min
Hydraulic pressure: max. 250 bar
Motor power: 5.5 kW
Machine weight: 3300 kg
Machine dimensions (LxWxH): 2550x2100x1700 mm

Powerful electro-hydraulic guillotine shear
AMADA NC control unit
Pivoting control panel front left
NC electro-motorized material backgauge
Backlash-free ball screw
Manual cutting gap adjustment with 2 levers
1x long side stop
1x support arm
Rigid welded machine body
Sighting device with three mirrors (cutting according to marking)
Front safety guard (finger protection)
Rear sheet chute
1 freely movable foot switch
Operating instructions (PDF)
