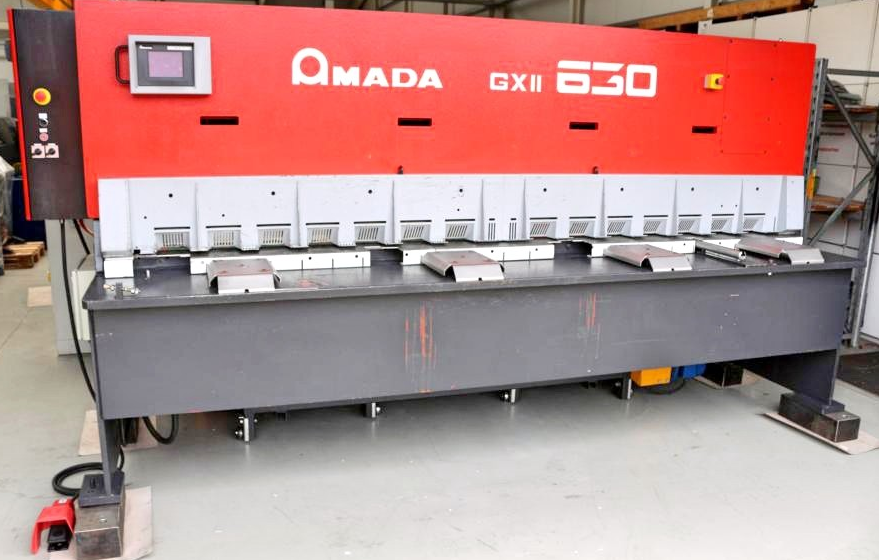

Amada GX II 630
EUROPE (Western and Northern)
AMADA GX II 630
2007
Sheet width 3050 mm
Plate thickness 6.35 mm
Thickness at stainless steel 4.00 mm
Maximum thickness 8.00 mm
Down holder 10 pcs
Cutting angle 0°40' - 2°20'
Cutting length 3340 mm
Maximum working height 860 mm
Backgauge 575 mm
Control GP 37W2 CNC
Number of strokes 13 - 33 strokes/min
Maximum pressure 315 bar
Oil volume 100 liters
Total power requirement 6.0 kW
Machine weight 6030 + 1850 kg
Robust CNC electro-hydraulic guillotine shear
AMADA CNC touch control front-left
Machine control with information display
Main display with 4 control panels
Control and operation of all functions
Max. 50 cutting programs with 15 sequences each
CNC electro-motorized backgauge
Backgauge travel speed 100 mm/sec
CNC electro-hydraulic cutting angle adjustment
CNC electro-hydraulic cutting gap adjustment
Sighting device and cutting line illumination
Manual table support plates with ball transfer units
Grip recesses in front support table
Two freely movable foot switches
Operating instructions and circuit diagram
Backgauge system with 3 stations and separate control
Station 1: AMADA conveyor belt with pneumatic sheet support
Station 2: AMADA conveyor belt with pneumatic scrap deflector
Station 3: AMADA stacking device with scissor lift table
Wooden box with spare knives
AMADA extra-long side stop approx. 3000 mm with support foot
Two AMADA extra-long front support arms
