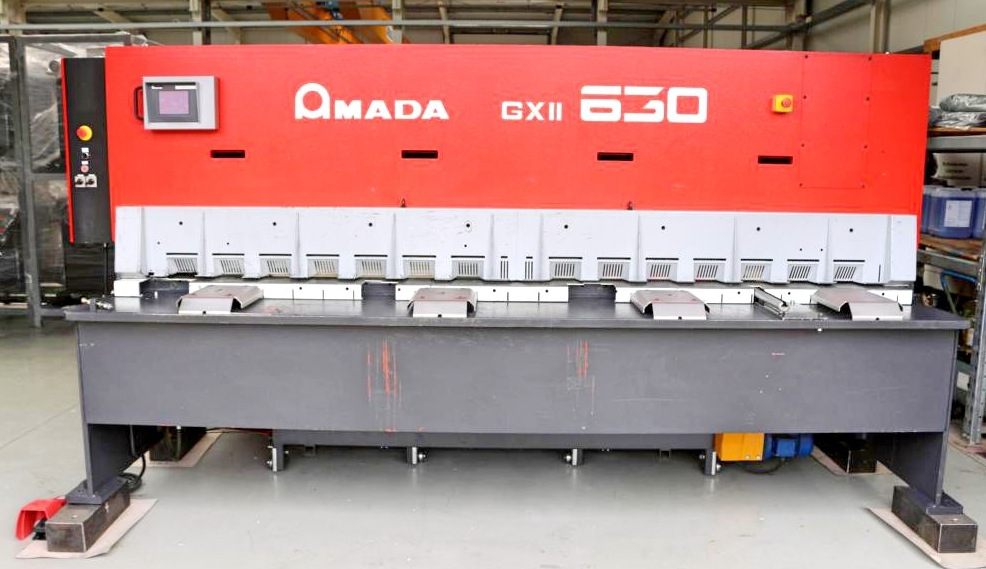

Amada GX II 630

Sheet width 3050 mm
Plate thickness 6.35 mm
Thickness at stainless steel 4.00 mm
Down holders 10 pcs
Cutting angle 0°40 - 2°20
Max. cutting length 3340 mm
Max. work height 860 mm
Max. stroke 575 mm
Control GP 37W2
Stroke range 13 - 33
Max. oil pressure 315 bar
Oil volume 100 ltr.
Total power requirement 6.0 kW
Machine weight 6030 + 1850 kg
CNC electro-hydraulic guillotine shear
AMADA CNC touch control GP 37W2
Machine control with information display
Main display with 4 control panels
Control/operation of all functions
Max. 50 cutting programs with 15 sequences each
CNC electro-motorized backgauge
Backgauge travel speed 100 mm/sec.
CNC electro-hydraulic cutting angle adjustment
CNC electro-hydraulic cutting gap adjustment
Sighting device & cutting line illumination
Manually adjustable table support plates with ball transfer units
Grip recesses in front support table
2x freely movable foot switches
Operating instructions + circuit diagram
Backgauge system with 3 stations and separate control
Station 1 - conveyor belt with pneumatic sheet support
Station 2 - conveyor belt with pneumatic scrap deflector
Station 3 - stacking device with scissor lift table
Wooden box with spare knives
AMADA extra-long side stop with support foot, approx. 3000 mm
2x AMADA extra-long front support arms
