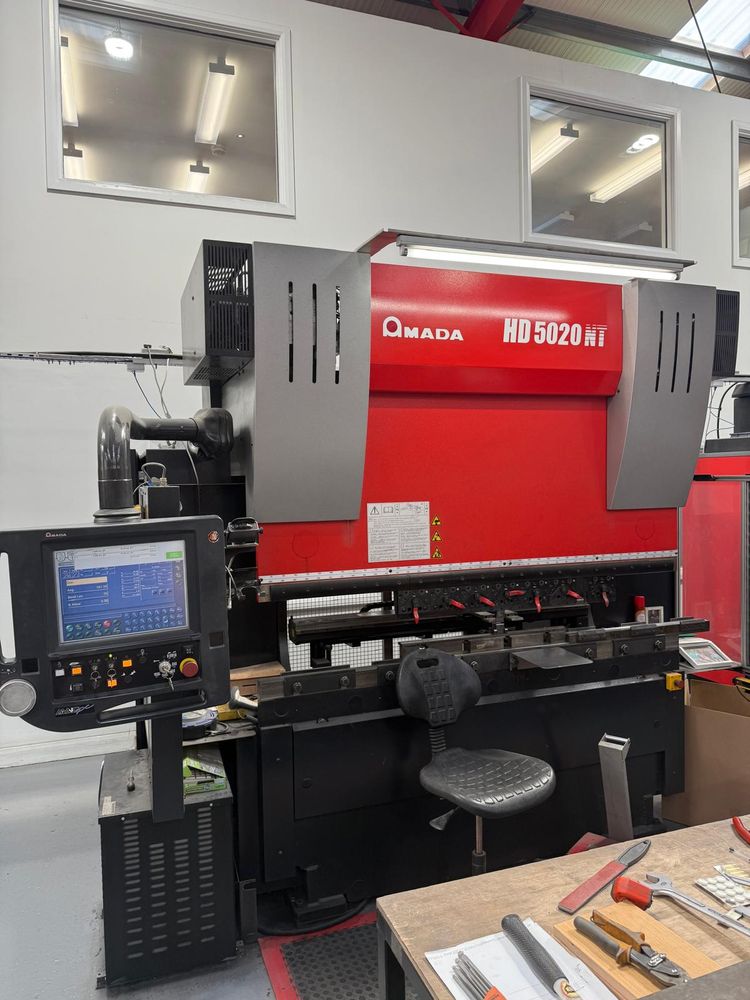

Amada HD 5020 Press Brake, 8 axis 50 tonnes

Tonnage: 50 tonnes
Beam length: 2090 mm
Distance between frames: 1660 mm
Throat depth: 420 mm
Open height without distance piece: 470 mm
Open height with distance piece: 350 mm
Stroke: 200 mm
Working height: 980 mm
Lower beam width: 60 mm
Upper beam width: 45 mm
Frame width: 40 mm
Approach speed: 120 mm/sec
Folding speed: 10 mm/sec
Return speed: 120 mm/sec
Y1 / Y2: 5 mm
Machine weight: 4.5 tonnes
Power requirement: 6.2 KVA
Length: 3870 mm
Height: 2685 mm
Width: 2880 mm (with arm at max extension)

Warranty: Parts and labour warranty
Installation and training available
Availability: Ex stock
Condition: Available to view in warehouse
