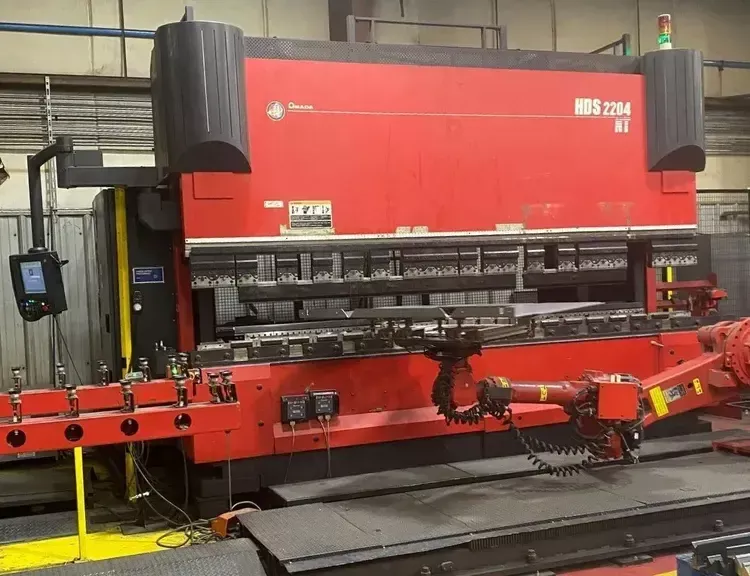

Amada HDS-2204NT 243 Ton

Capacity: 243 Ton
Type: Hydraulic
Number of Axes: 8
Control: Amada AMNC PC
Overall Length: 168.5"
Overall Bed Length: 14'
Distance Between Housings: 148"
Stroke: 17.72"
Open Height: 26"
Machine Length (C): 224.8"
Machine Length (D): 126.57"
Approach Speed: 7.87 IPS
Bending Speed: 0.78 IPS
Power Requirement: 99 Amps @ 200 Volts
Hydraulic Oil Capacity: 33.4 Gallons
Astro 165W NT Robotic Bending System
Astro 165W Structure Vertical 6-Axis Multi-Joint Type with Traveling Axis 15.75 Ft, 20 Ft
Astro 165W Lifting Capacity: 364 Lbs
Maximum Part Size (Astro): 59" x 118" (157" on HDS 2204 NT)
Minimum Part Size (Astro): 5.9" x 5.9"
Thickness Capacity (Astro): 0.024" – 0.236" with Special Hands
Power Requirement (Astro): 6 KVA
Positioning Accuracy (Astro): ±0.0027" Robot
Positioning Accuracy (Astro): ±0.0078" Axis
Robot Weight (Astro): 3,400 Lbs
