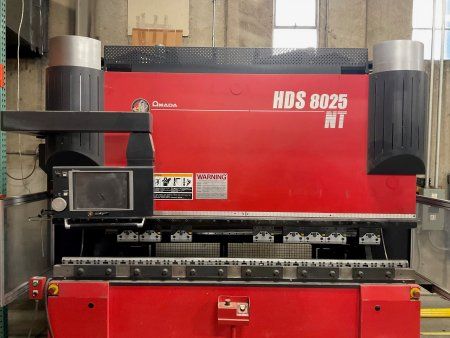

Amada HDS8025NT 88 tons

CNC press brake
Hydraulic press brake
CNC backgauge
Ram crowning
Vertical finger positioning
Horizontal finger movement
Multi-axis backgauge system

Technical Data:
Press Force: 88 tons
Maximum Bend Length: 102 in
Maximum Stroke Length: 7.87 in
Open Height: 19.7 in
Throat Depth: 16.3 in
Distance Between Housings: 86.6 in
Ram Repeatability: 0.00004 in
Approach Speed: 7.87 in/sec
Bending Speed Maximum: 0.78 in/sec
Return Speed: 7.87 in/sec
Hydraulic Oil Capacity: 9.5 gal
Machine Weight: 14,800 lb
Power Requirement: 44 A at 200 V
Backgauge Repeatability L Axis: 0.0008 in
Backgauge Travel L Axis: 27.55 in
Backgauge Travel Y Axis: 86.6 in
Backgauge Travel Z Axis: 9.8 in
Backgauge Feed Speed L Axis: 1180 in/min
Backgauge Feed Speed Y Axis: 2362 in/min
Backgauge Feed Speed X Axis: 393 in/min
Minimum Command Unit Ram: 0.0001 in
Minimum Command Unit Backgauge: 0.001 in
CNC Control Model: AMNC-PC
Number of Controlled Axes: 8
Ram Tilt: 0.098 in
Backgauge Taper: 14 positions
