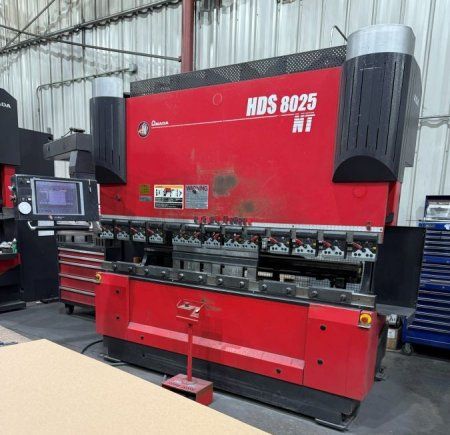

Amada HDS8025NT 88 U.S. tons

Press Force: 88 U.S. tons
Bend Length: 102 in
Maximum Stroke Length: 7.87 in
Open Height: 19.7 in
Throat Depth: 16.3 in
Distance Between Housings: 86.6 in
Ram Repeatability: 0.00004 in
Approach Speed: 7.87 in/sec
Bending Speed: 0.78 in/sec max programmable
Return Speed: 7.87 in/sec
Hydraulic Oil Capacity: 9.5 gal
Power Requirement: 44 A at 200 V
Machine Weight: 14,800 lb approx

Backgauge Repeatability L Axis: 0.0008 in
L Axis Travel: 27.55 in
Y Axis Travel: 86.6 in
Z Axis Travel: 9.8 in
L Axis Feed Speed: 1,180 in/min
Y Axis Feed Speed: 2,362 in/min
X Axis Feed Speed: 393 in/min
Minimum Command Unit Ram: 0.0001 in
Minimum Command Unit Backgauge: 0.001 in

CNC Control: AMNC-PC
Axes of Control: 8
D1 & D2 Ram Depth Control
Ram Tilt: 0.098 in
L1 & L2 Backgauge Control
Backgauge Taper: 14
Y1 & Y2 Vertical Finger Position
Horizontal Finger Movement CC
Ram Crowning
