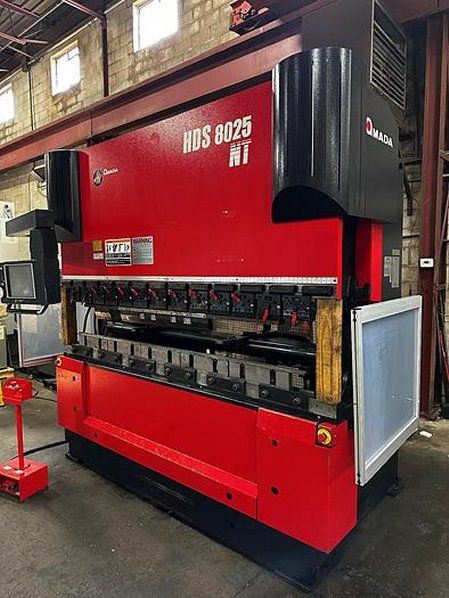

Amada HDS8025NT 88 US tons

Servo-Hydraulic CNC Press Brake
Amada HDS8025NT
Manufacture Year: 2008

Tonnage Capacity: 88 US tons
Maximum Bending Length: 102.36"
Distance Between Frames: 87.01"
Throat Depth: 16.34"
Table Height: 37.80"
Stroke Length: 7.87"

Performance & Speed:
Approach Speed (Upper Beam): 472 IPM
Bending Speed (Upper Beam): 47 IPM
Return Speed (Upper Beam): 474 IPM
Main Cylinders: 2
Hydraulic Pump Motor Output: 12.06 HP
Hydraulic Tank Capacity: 9.9 gallons

Dimensions & Weight:
Overall Length: 161"
Overall Width: 89.6"
Overall Height / Ground Height: 107.1"
Machine Weight: 14,770 lbs

Backgauge Specifications:
Repeatability (L Axis): ±0.0008"
Movement Range – L Axis: 27.55"
Movement Range – Y Axis: 86.6"
Movement Range – Z Axis: 9.8"
Feed Speed – L Axis: 1,180 IPM
Feed Speed – Y Axis: 2,362 IPM
Feed Speed – X Axis: 393 IPM
Minimum Command Unit – Ram: 0.0001"
Minimum Command Unit – Backgauge: 0.001"

CNC Controller: Amada AMNC-PC
Axes of Control: 8
D1 & D2 – Ram Depth (0.098" Tilt)
L1 & L2 – Backgauge (14 Backgauge Taper)
Y1 & Y2 – Z Vertical Finger Position
CC – Ram Crowning (Horizontal Finger Movement)
Input Method: 15" Color LCD Touch Screen
Program Storage: Network-dependent (virtually unlimited)
Bends per Program: Up to 99
Punch Library Capacity: Up to 300 entries
Die Library Capacity: Up to 300 entries
