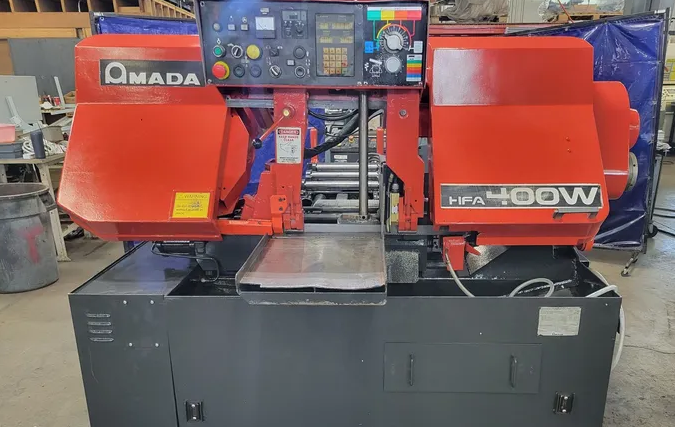

Amada HFA 400-W Band Saw SemiAutomatic

Rectangular Capacity (H): 16"
Rectangular Capacity (W): 16"
Round Capacity: 16"
Square Capacity: 16"
Blade Width: 1.5"
Blade Thickness: 0.05"
Blade Speed: 56–295 ft/min Stepless
Power: 7.5 HP
Control: CNC
Vise Type: Main and Rear Vise
Vise Control: Hydraulic Full-Stroke Cylinder
Cutting Control: Hydraulic Pressure & Flow Control Valve
Tension Control: Hydraulic
Saw Blade Motor: 7.5 HP
Hydraulic Pump Motor: 2 HP
Cutting Fluid Pump Motor: 1/4 HP
Power Requirement: AC220V±10%, 3 PH, 60 Hz or AC440V±10%, 3 PH, 60 Hz
Power Requirement: 11 kVA
Cutting Fluid Tank Capacity: 31.7 gal
Centrifugal Electric Pump Capacity: 10.6 gal/min
Hydraulic Tank Capacity: 10.6 gal
Variable-Discharge Vane Pump Capacity: 5.8 gal/min
Hydraulic Pressure Setting: 498 psi
Chip Disposal: Chip Conveyor
Material Index Mechanism: Shuttle Type
Stroke: 19.6"
Length Setting: 0.39–999.999"
Number of Input Stations: 1–99
Number of Cut-Off Pieces: 1–9999
Remnant Length: 3" Plus Length of Parts
Machine Dimensions Head-Up (W x L x H): 89.5" x 106.2" x 95.5"
Machine Dimensions Head-Down (W x L x H): 89.5" x 106.2" x 62.0"
Table Height: 31.5"
Machine Weight: 4,850 lbs
Programmable NC Control for Length of Cut, Number of Pieces, and Other Parameters
Chip Conveyor
Powered Blade Brush
Coolant System with Wash Down Hose
Rapid Approach Head
Carbide Blade Guides
Manuals
