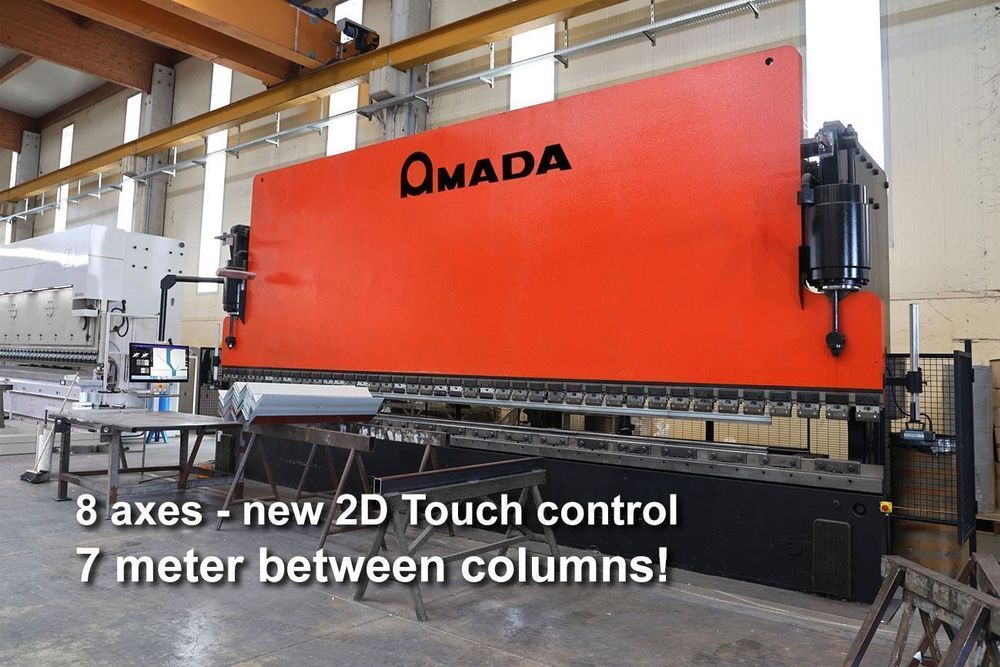

Amada HFBO 630 ton x 8100 mm CNC

AMADA HFBO 630 ton x 8100 mm CNC

Capacity: 630 ton x 8100 mm
Backgauge: heavy duty CNC
Control: 2D Touch
Passage between uprights: 7210 mm
Max stroke: 300 mm
Max distance between table–ram: 650 mm
Depth of throat: 400 mm
Table width: 350 mm
Locking speed: 70 mm/sec
Working speed: 7 mm/sec
Returning speed: 55 mm/sec
Electric motor power: 47 kW
Power needed: 380 V
Length: 8400 mm
Depth: 3100 mm
Height: 4620 mm
Weight: 90 ton

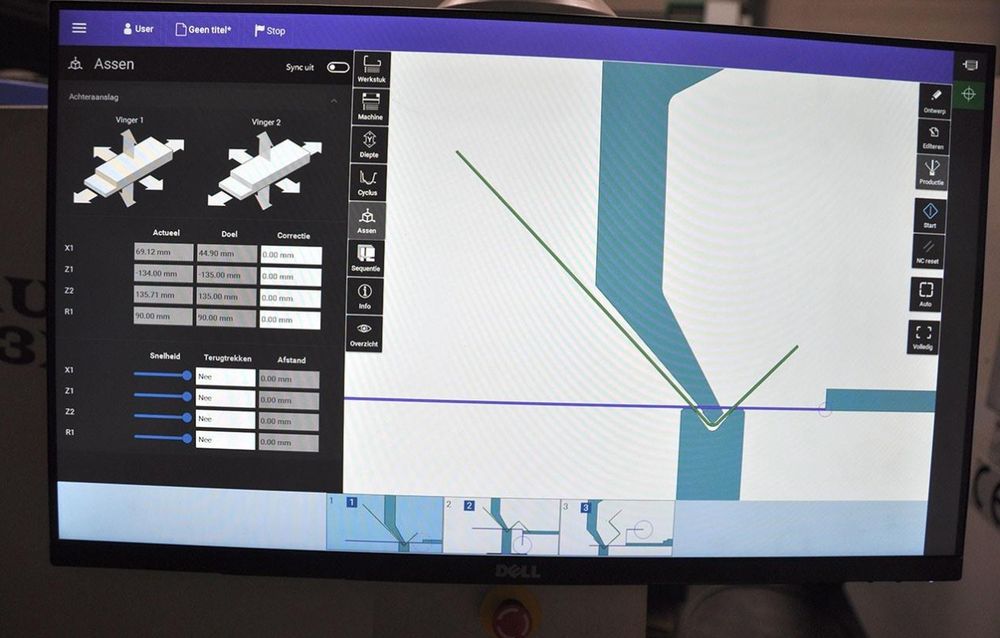

8 axes: Y1 / Y2 / X / R1 / R2 / Z1 / Z2 / V

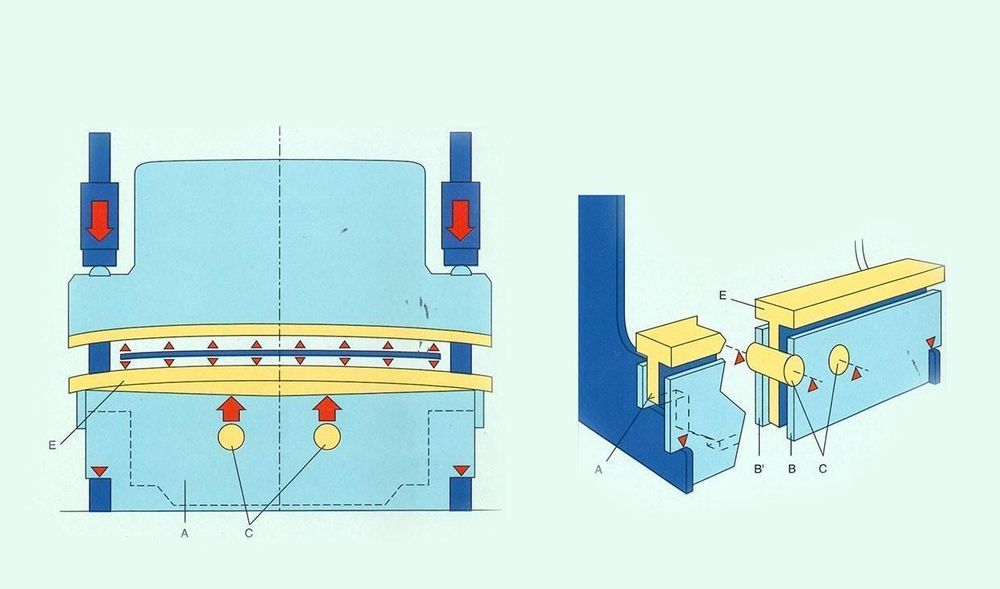

Amada bombing system (V)

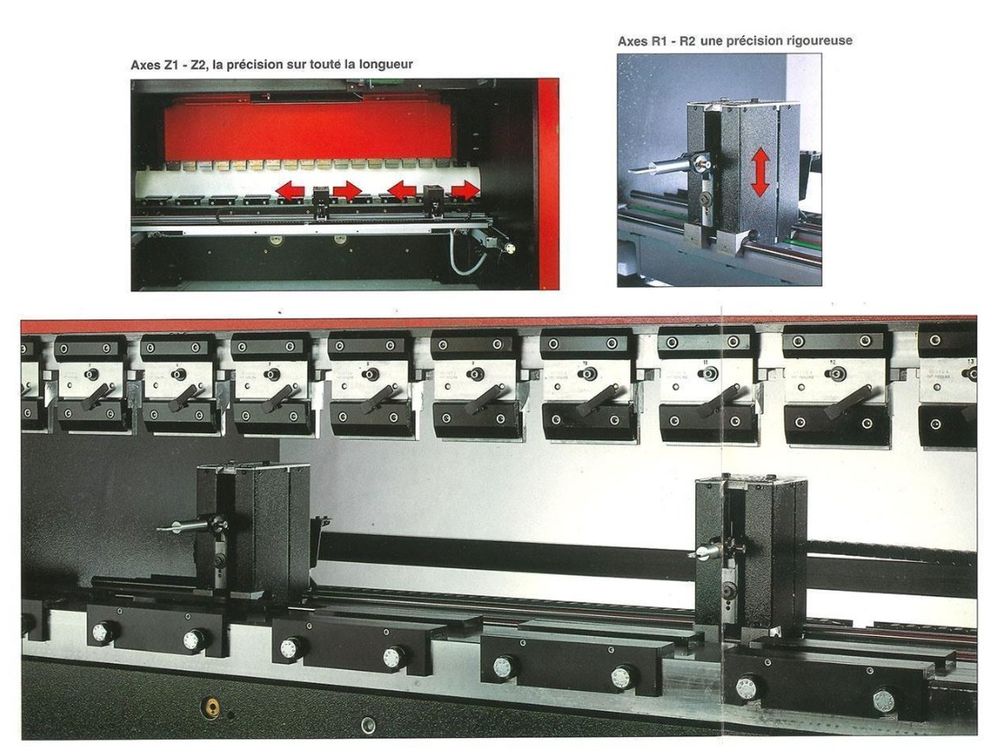

Heavy backstop

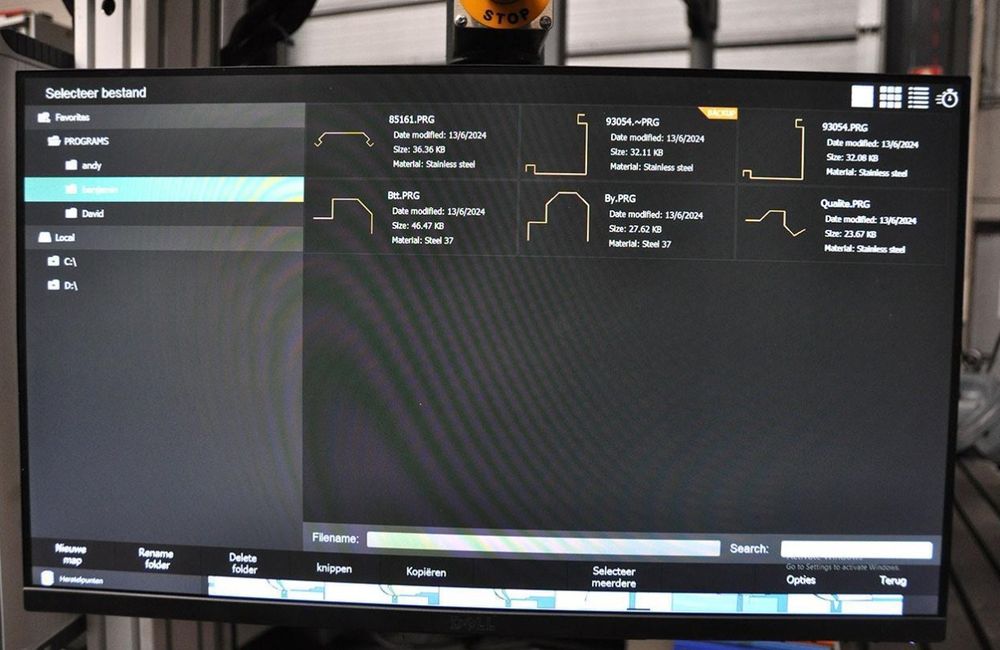

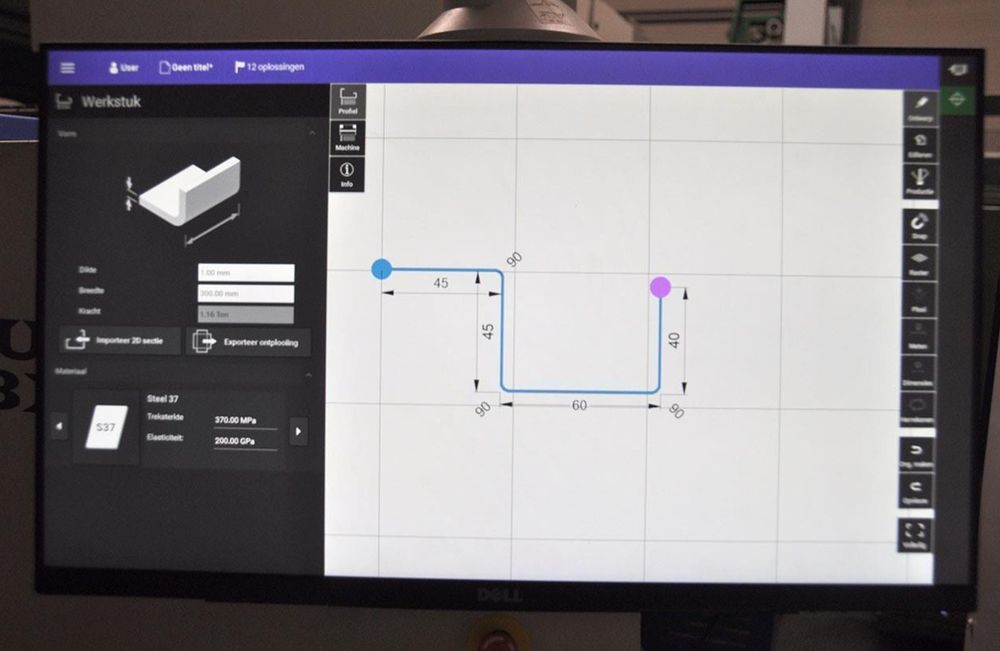

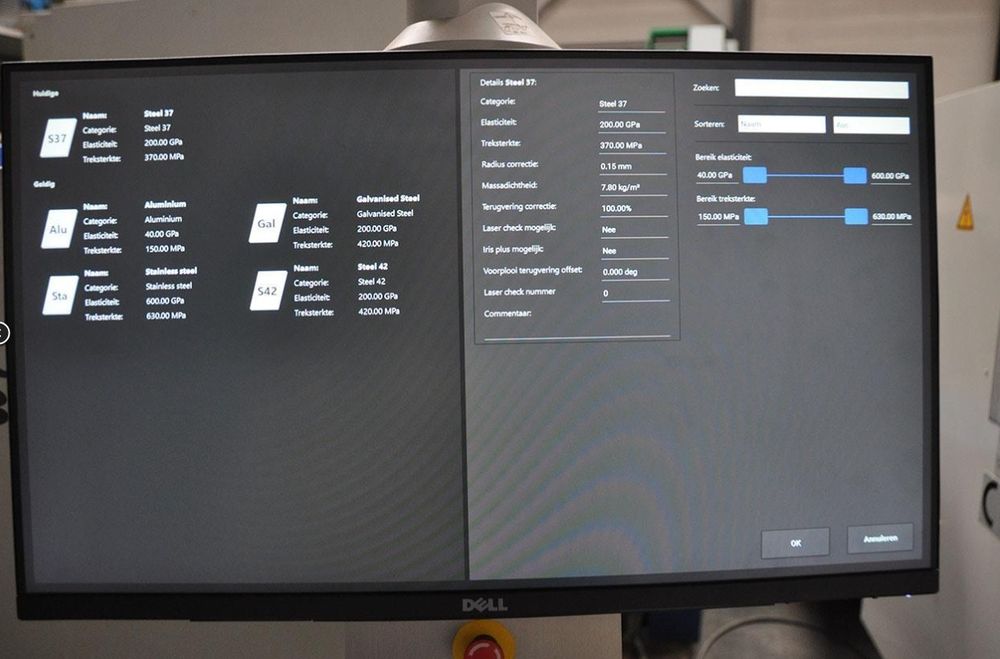

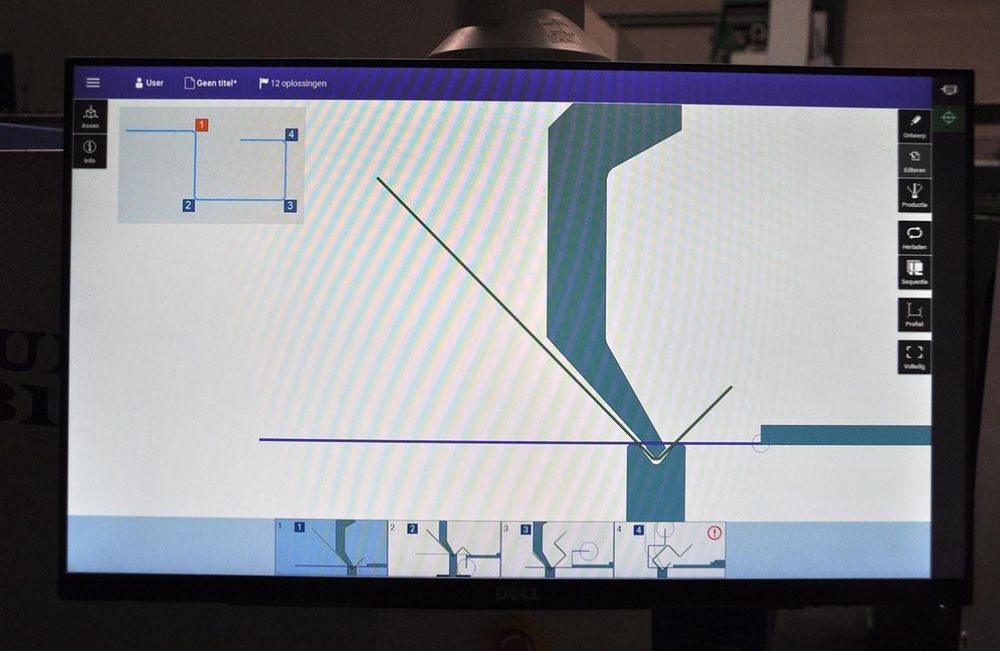

New 2D Touch graphic controls
New laser security system
Machine can be dismantled into parts
Can be transported in containers

see 5 photos CNC
