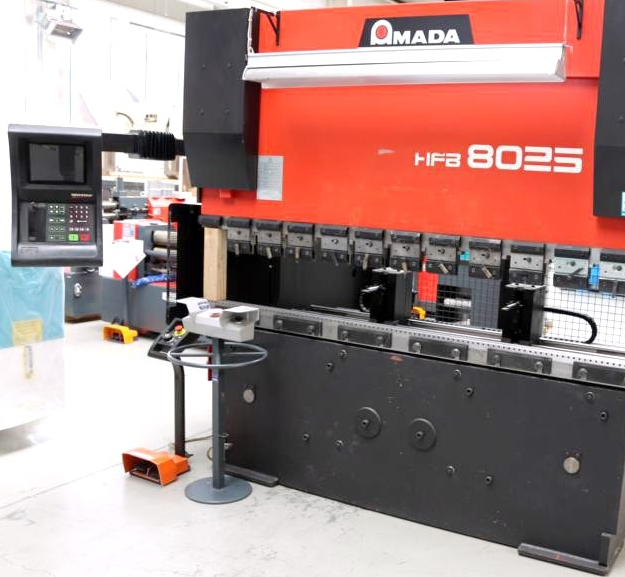

Amada HFBO 80-25 80.0 t

AMADA HFBO 80-25
Year of Manufacture: 1996

Pressing force: 80.0 t
Bending length: 2550 mm
Distance between columns: 2130 mm
Throat depth: 420 mm
Adjustment speed: 100 mm/sec
Working feed: 10.0 mm/sec
Return speed: 80.0 mm/sec
Stroke: 200 mm
Daylight opening: 470 mm
Table width: 60.0 mm
Table height: 910 mm
Operating hours: approx. 37,102 h
Total power requirement: 9.0 kW
Machine weight approx.: 5750 kg
Machine dimensions (L x W x H): 3100 x 2180 x 2540 mm

Features:
CNC control OPERATEUR for axes X, Y1+Y2, R1+R2, Z1+Z2
CNC-controlled back gauge (X-axis)
CNC-controlled vertical stop finger adjustment (R-axis)
CNC-controlled left-right stop finger adjustment (Z-axis)
Manual axis movement via hand control on foot switch
Movable two-hand control and foot switch
AMADA-type tool top wedge crowning
Various tooling included
CE marking
2x emergency stop buttons at the front
Original documentation and operating manuals
Machine in very well-maintained condition
Approx. 7,700 operating hours only
