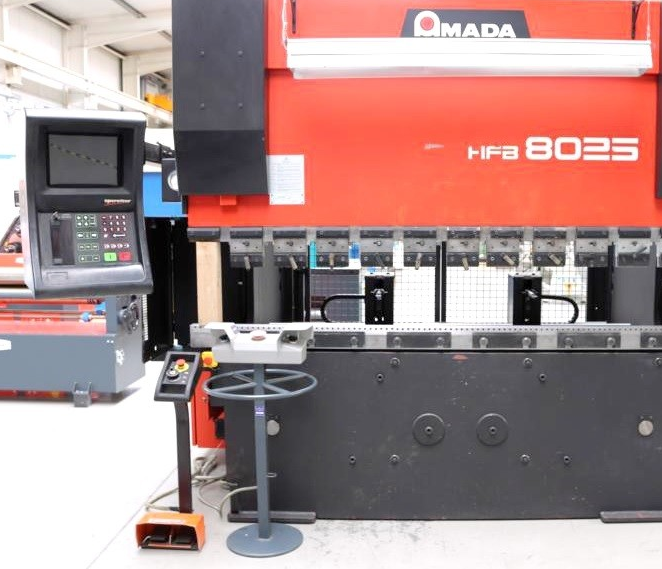

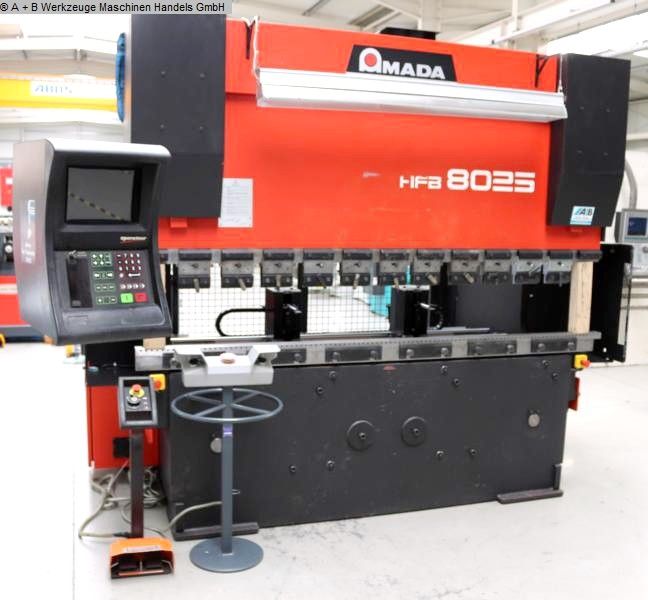

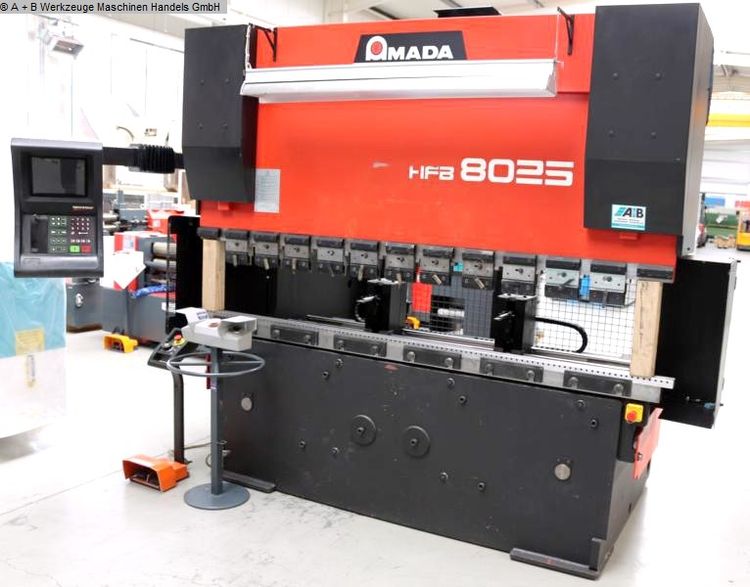

Amada HFBO 80-25 80 t

Pressure: 80 t
Chamfer length: 2550 mm
Distance between columns: 2130 mm
Column arm: 420 mm
Adjustment speed: 100 mm/sec
Working feed: 10.0 mm/sec
Return speed: 80.0 mm/sec
Stroke: 200 mm
Daylight: 470 mm
Table width: 60 mm
Table height: 910 mm

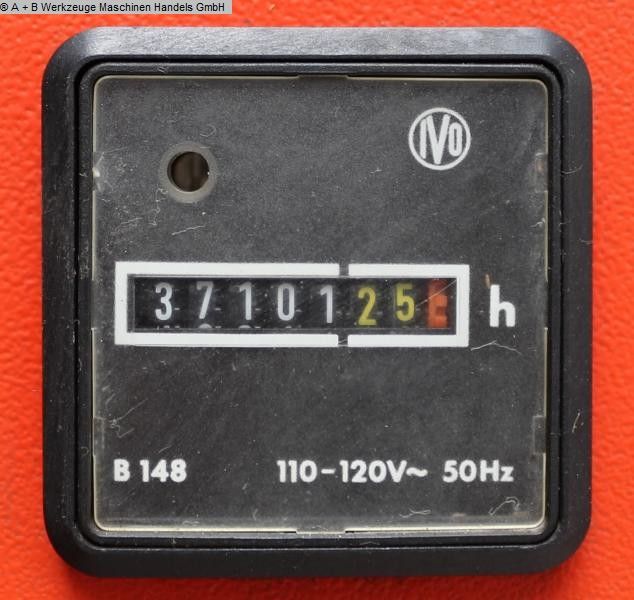

Number of working hours: approx. 37102 h
Total power requirement: 9.0 kW
Weight: 5750 kg
Range L-W-H: 3100 x 2180 x 2540 mm

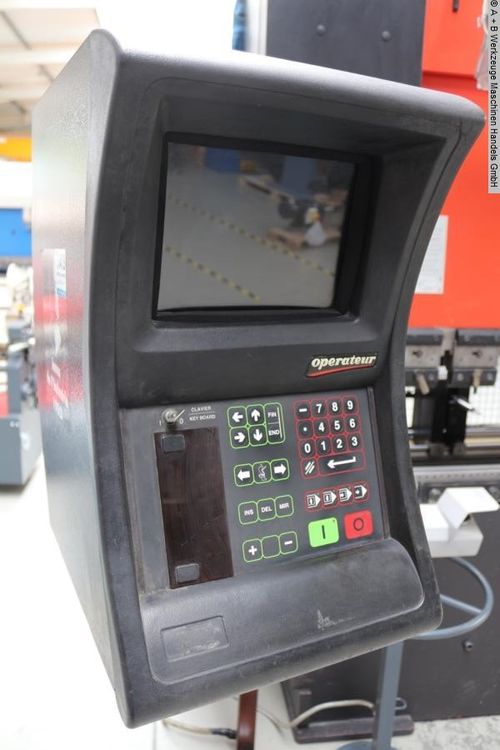

CNC control OPERATEUR for axes X, Y1+Y2, R1+R2, Z1+Z2

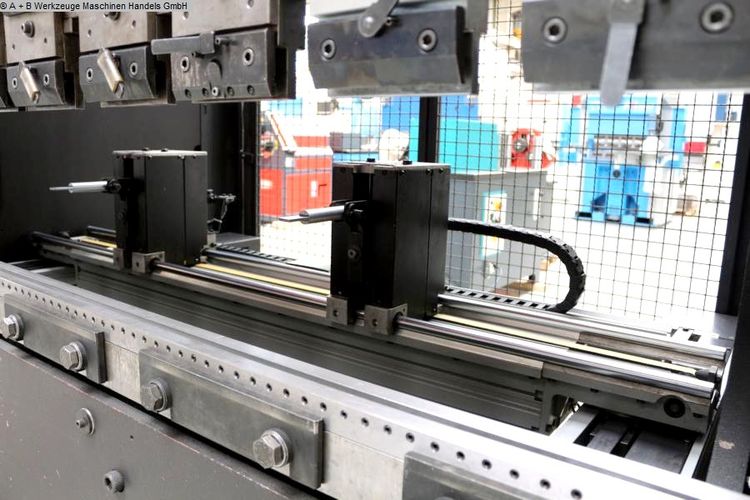

CNC-controlled back gauge adjustment (X axis)
CNC-controlled vertical adjustment of stop fingers (R axis)
CNC-controlled adjustment of stop fingers left-right (Z axis)
Hand control device on foot switch for manual movement of axes
Freely movable two-hand control and foot switch
Tool top wedge crowning type AMADA

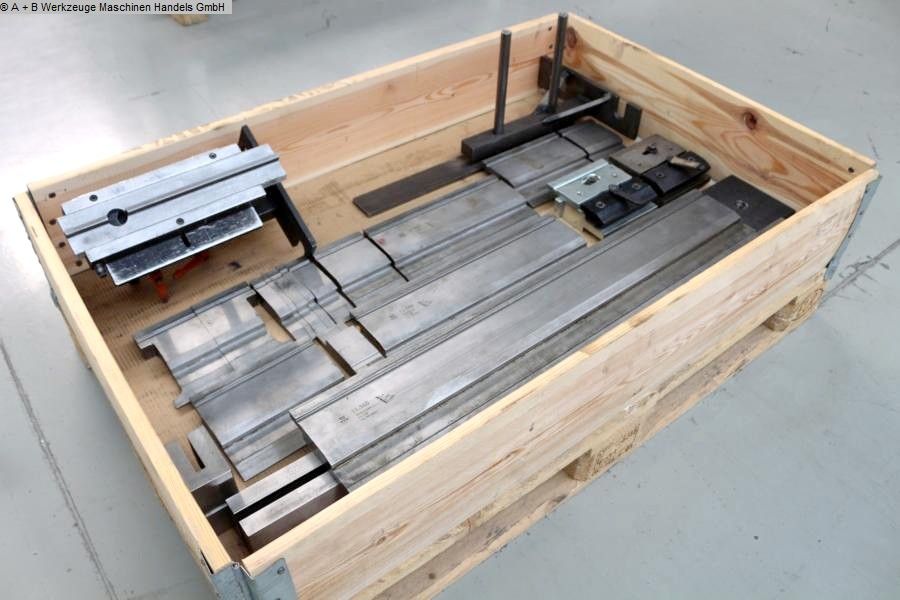

Various application tools
CE marking
2 emergency stop buttons at the front
Original documents such as operating instructions
