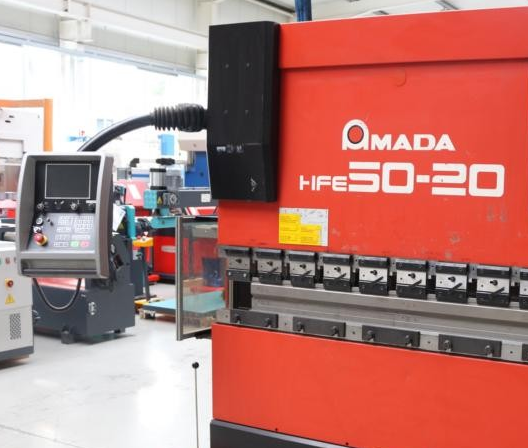

Amada HFE 50-20 50.0 t

Press force: 50.0 t
Bending length: 2090 mm
Distance between columns: 1665 mm
Throat depth: 400 mm
Table width: 60.0 mm
Adjustment speed: 100 mm/sec
Working feed: 10.0 mm/sec
Return speed: 92.0 mm/sec
Stroke: 200 mm
Table height: 910 mm
Daylight: 470 mm
Working hours: 36,160 h
Total power requirement: 6.0 kW
Weight: 4850 kg
Dimensions: 3458 x 2450 x 2450 mm
CNC control type OPERATEUR 2
8 axes (X1+X2, Y1+Y2, R1+R2, Z1+Z2)
CNC-controlled backgauge adjustment (X-axis)
CNC-controlled vertical stop finger adjustment (R1+R2)
CNC-controlled left-right stop finger adjustment (Z1+Z2)
Hand control unit for manual axis movement
Pivoting control panel front left
AMADA/PROMECAM quick clamping system for upper tool
Split set of offset upper tools (UKB 10.512)
AMADA/PROMECAM bottom tool holder
Split set of 1-V dies (UKB 20.810)
Side guards with hinged doors
Rear guards with hinged door
CE marking
Freely movable double foot switch
Operating instructions (PDF)
